| Body Material | PA6GFR30 |
| Cartridge Material | PP |
| Maximum Working Pressure | 8 bar ; 116 Psi |
| Maximum Working Temperature | 60 °C ; 140°F |
| Filtration Sensitivity | 20, 50, 100, 130, 200 μ (micron) |
Cleaning Process
The pressure differential is manually monitored via the inlet and outlet manometers. An increase in pressure indicates the need for cleaning. To begin, shut off the water supply and depressurize the system. Then, remove the cover and extract the filter cartridge. The cleaning method depends on the filter type. A screen filter element is cleaned directly with pressurized water. For a disc filter, the cartridge’s retaining screw must be loosened to separate the discs for a thorough cleaning with pressurized water. After cleaning, the filter is reassembled and ready for service.
Working Principle
Water enters the filter and passes through the filtration element (either a fine screen or a set of discs). During operation, contaminants gradually accumulate on the surface of this element—the inner surface for screens or the outer surface for discs. This buildup obstructs the water flow, creating a pressure differential between the filter’s inlet and outlet. Manual cleaning is required when this pressure differential reaches 0.7 bar

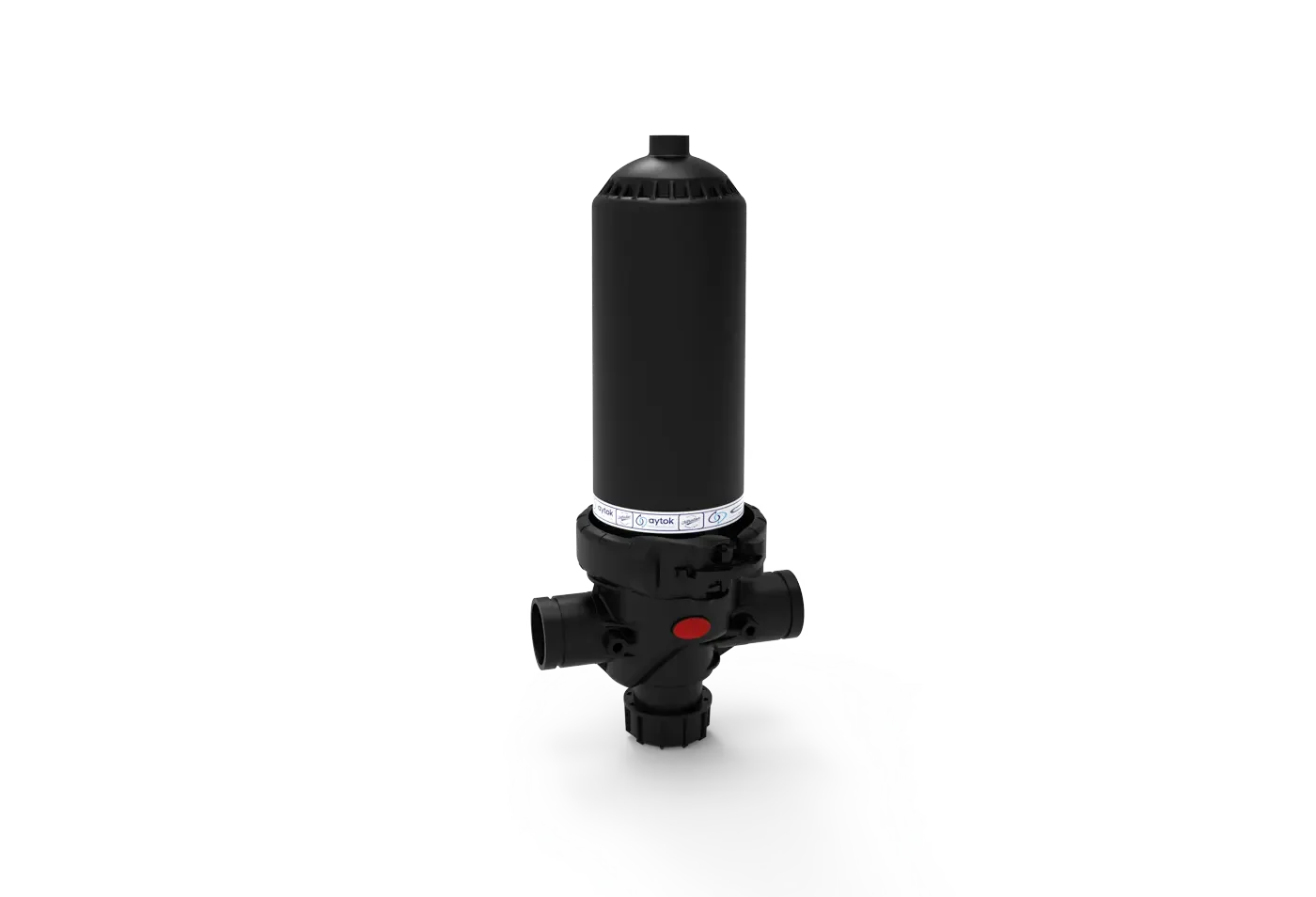

PD Plastic Manual Disc and Screen Filters
local_offer
PD
ADVANTAGES
Engineered for Lasting Durability
Aytok PD/PE manual filters are built to withstand the elements. Featuring a robust polyamide body, these filters use high-quality materials for all critical components, including a corrosion-resistant AISI 304 stainless steel cartridge in the screen models. This smart and versatile design guarantees years of trouble-free performance, delivering reliability you can count on.
GENERAL FEATURES
| Body Material | PA6GFR30 |
| Cartridge Material | PP |
| Maximum Working Pressure | 8 bar ; 116 Psi |
| Maximum Working Temperature | 60 °C ; 140°F |
| Filtration Sensitivity | 20, 50, 100, 130, 200 μ (micron) |
Ürün Detayı
PD Plastic Manual Disc and Screen Filters
local_offer
PD
GENERAL FEATURES
Cleaning Process
The pressure differential is manually monitored via the inlet and outlet manometers. An increase in pressure indicates the need for cleaning. To begin, shut off the water supply and depressurize the system. Then, remove the cover and extract the filter cartridge. The cleaning method depends on the filter type. A screen filter element is cleaned directly with pressurized water. For a disc filter, the cartridge’s retaining screw must be loosened to separate the discs for a thorough cleaning with pressurized water. After cleaning, the filter is reassembled and ready for service.
Working Principle
Water enters the filter and passes through the filtration element (either a fine screen or a set of discs). During operation, contaminants gradually accumulate on the surface of this element—the inner surface for screens or the outer surface for discs. This buildup obstructs the water flow, creating a pressure differential between the filter’s inlet and outlet. Manual cleaning is required when this pressure differential reaches 0.7 bar
ADVANTAGES
Powerful Filtration, Smarter Design.
Engineered for Lasting Durability
Aytok PD/PE manual filters are built to withstand the elements. Featuring a robust polyamide body, these filters use high-quality materials for all critical components, including a corrosion-resistant AISI 304 stainless steel cartridge in the screen models. This smart and versatile design guarantees years of trouble-free performance, delivering reliability you can count on.
