| Body Material | PA6GFR30 |
| Cartridge Material | SS304L, PA6GFR30 |
| Maximum Working Pressure | 8 bar ; 116 Psi |
| Maximum Working Temperature | 60 °C ; 140°F |
| Filtration Sensitivity | 20-2000 μ (micron) |
Cleaning Process
The pressure differential is manually monitored via the inlet and outlet manometers. An increase in pressure indicates the need for cleaning. To begin, shut off the water supply and depressurize the system. Then, remove the cover and extract the filter cartridge. The cleaning method depends on the filter type. A screen filter element is cleaned directly with pressurized water. For a disc filter, the cartridge’s retaining screw must be loosened to separate the discs for a thorough cleaning with pressurized water. After cleaning, the filter is reassembled and ready for service.
Working Principle
Water enters the filter and passes through the filtration element (either a fine screen or a set of discs). During operation, contaminants gradually accumulate on the surface of this element—the inner surface for screens or the outer surface for discs. This buildup obstructs the water flow, creating a pressure differential between the filter’s inlet and outlet. Manual cleaning is required when this pressure differential reaches 0.7 bar.

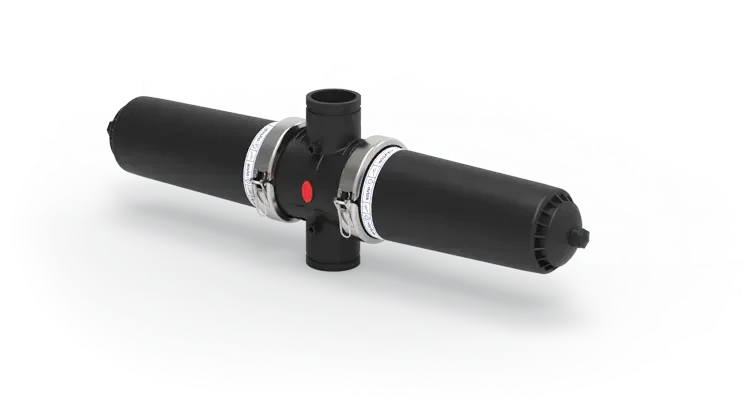

DD & DE Series - Plastic Manual Double Disc and Screen Filters
local_offer
DE
ADVANTAGES
Double the Capacity. Uncompromised Reliability.
The Aytok DE-DD series is engineered with legendary durability to meet the highest demands. Its smart, dual-body design doubles the filtration surface, enabling it to handle significantly higher flow rates while drastically reducing cleaning frequency. Built with a robust polyamide body, the series offers unmatched corrosion resistance in its screen models (DE/DSE), which feature high-quality AISI 304 stainless steel cartridges. This guarantees years of trouble-free performance, delivering superior reliability for your most demanding applications.
GENERAL FEATURES
| Body Material | PA6GFR30 |
| Cartridge Material | SS304L, PA6GFR30 |
| Maximum Working Pressure | 8 bar ; 116 Psi |
| Maximum Working Temperature | 60 °C ; 140°F |
| Filtration Sensitivity | 20-2000 μ (micron) |
Ürün Detayı
DD & DE Series - Plastic Manual Double Disc and Screen Filters
local_offer
DE
GENERAL FEATURES
Cleaning Process
The pressure differential is manually monitored via the inlet and outlet manometers. An increase in pressure indicates the need for cleaning. To begin, shut off the water supply and depressurize the system. Then, remove the cover and extract the filter cartridge. The cleaning method depends on the filter type. A screen filter element is cleaned directly with pressurized water. For a disc filter, the cartridge’s retaining screw must be loosened to separate the discs for a thorough cleaning with pressurized water. After cleaning, the filter is reassembled and ready for service.
Working Principle
Water enters the filter and passes through the filtration element (either a fine screen or a set of discs). During operation, contaminants gradually accumulate on the surface of this element—the inner surface for screens or the outer surface for discs. This buildup obstructs the water flow, creating a pressure differential between the filter’s inlet and outlet. Manual cleaning is required when this pressure differential reaches 0.7 bar.
ADVANTAGES
Powerful Filtration, Smarter Design.
Double the Capacity. Uncompromised Reliability.
The Aytok DE-DD series is engineered with legendary durability to meet the highest demands. Its smart, dual-body design doubles the filtration surface, enabling it to handle significantly higher flow rates while drastically reducing cleaning frequency. Built with a robust polyamide body, the series offers unmatched corrosion resistance in its screen models (DE/DSE), which feature high-quality AISI 304 stainless steel cartridges. This guarantees years of trouble-free performance, delivering superior reliability for your most demanding applications.
