Systèmes de châssis prêts à l'emploi
Body Material: PA6GFR30 Maximum Working Pressure: 6 Bar (87 PSI) Minimum Working Pressure: 1 Bar (15 PSI) Maximum Working Temperature : 60 °C (140 °F) Back Flush Operation Criteria: Pressure Differencal Back Flush Controlling Unit : Manual Filtration Degree: 20-1000 micron (µ) Painting Method: Electrostratic Powder Coating Painting Material: Epoxy Polyester
GENEL ÖZELLİKLER
Body Material: PA6GFR30
Disc Material: PP
Maximum Working Pressure: 6 Bar (87 PSI)
Minimum Working Pressure: 1 Bar (15 PSI)
Maximum Working Temperature : 60 °C (140 °F)
Back Flush Operation Criteria: Pressure Differencal
Back Flush Controlling Unit : Manual
Filtration Degree: 20-50-100-130 micron (µ)
Painting Method: Electrostratic Powder Coating
Painting Material: Epoxy Polyester

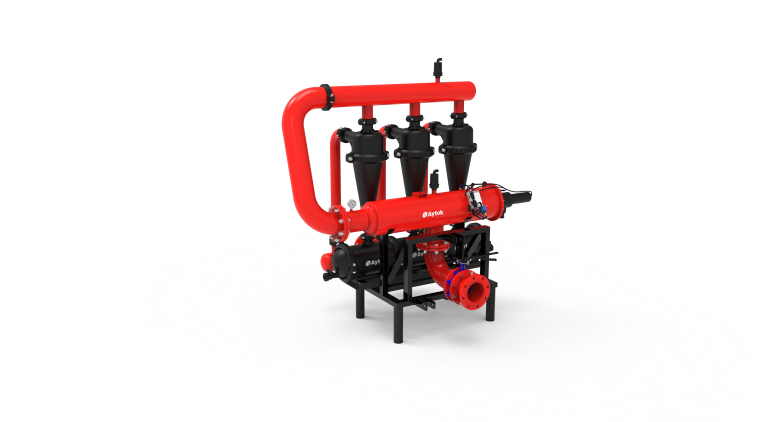

| CODE | SYSTEM | CAPACITY (m³/h) |
| EVF104HS | 4" 2X3" PLASTIC HYDROCYCLONE +EVF104 | 70-100 |
| EVF105HS | 5" 2X3" PLASTIC HYDROCYCLONE + EVF105 | 100-120 |
| EVF105SHS | 5" 3X3" PLASTIC HYDROCYCLONE + EVF105S | 120-150 |
| EVF106HS | 6" 3X3" PLASTIC HYDROCYCLONE + EVF106 | 150-180 |
| EVF126SHS | 6" 4X3" PLASTIC HYDROCYCLONE + EVF126S | 180-220 |
