| Body Material | PA6GFR30 |
| Cartridge Material | PP |
| Maximum Working Pressure | 8 bar ; 116 Psi |
| Minimum Working Pressure | 2 bar ; 29 Psi |
| Maximum Working Temperature | 60 °C ; 140°F |
| Back Washing Time | Time and Pressure Difference Setup |
| Filtration Sensitivity For (3”-4”) | 20, 50, 100, 130, 200 μ (micron) |
| Filtration Sensitivity For (6”) | 130 μ (micron) |
Cleaning Process
Waterborne particles entering the filter are captured on the outer surface of a compressed disc stack, forming a layer of contaminants. This buildup causes the pressure differential between the filter’s inlet and outlet to increase. The system automatically initiates a backwash cycle based on one of two user-defined triggers configured on the control panel: when the pressure differential reaches a preset value, or after a pre-determined time interval has elapsed, whichever occurs first. Upon activation, a three-way valve reverses the water flow direction and opens the discharge line. The pressurized water from the outlet acts on an internal spring mechanism, releasing the compression on the discs and allowing them to separate. This reverse flow, combined with the grooved design of the discs, causes them to spin and effectively flushes the accumulated particles from their surfaces out through the drainage line.
Working Principle
Water enters the filter and passes through the disc stack. During operation, contaminants accumulate on the outer surface of the discs. This buildup obstructs the water flow, creating a pressure differential between the filter’s inlet and outlet. When this pressure differential reaches a threshold of 0.7 bar, a cleaning cycle is required, which can be initiated either manually or automatically

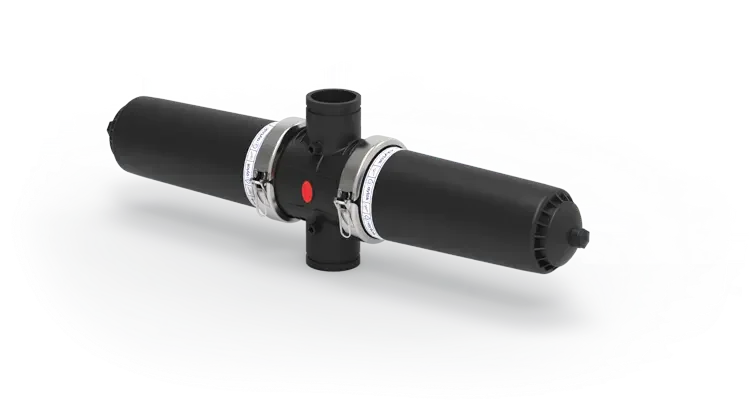

DDSC Series - Plastic Self-Cleaning Disc Filters (Double Body)
local_offer
DDSC
ADVANTAGES
Engineered for High-Capacity Autonomy.
Aytok DDSC filters deliver fully autonomous, selfcleaning filtration for the most demanding industrial systems. Their innovative dual-body design provides a vast filtration surface to maximize flow rates and minimize backwash frequency. Engineered for industrial-grade durability, its robust construction integrates high-strength polyamide bodies with a precision backwash system. This fully hands-off system guarantees superior performance and unwavering reliability for your mission-critical operations.
GENERAL FEATURES
| Body Material | PA6GFR30 |
| Cartridge Material | PP |
| Maximum Working Pressure | 8 bar ; 116 Psi |
| Minimum Working Pressure | 2 bar ; 29 Psi |
| Maximum Working Temperature | 60 °C ; 140°F |
| Back Washing Time | Time and Pressure Difference Setup |
| Filtration Sensitivity For (3”-4”) | 20, 50, 100, 130, 200 μ (micron) |
| Filtration Sensitivity For (6”) | 130 μ (micron) |
Ürün Detayı
DDSC Series - Plastic Self-Cleaning Disc Filters (Double Body)
local_offer
DDSC
GENERAL FEATURES
Cleaning Process
Waterborne particles entering the filter are captured on the outer surface of a compressed disc stack, forming a layer of contaminants. This buildup causes the pressure differential between the filter’s inlet and outlet to increase. The system automatically initiates a backwash cycle based on one of two user-defined triggers configured on the control panel: when the pressure differential reaches a preset value, or after a pre-determined time interval has elapsed, whichever occurs first. Upon activation, a three-way valve reverses the water flow direction and opens the discharge line. The pressurized water from the outlet acts on an internal spring mechanism, releasing the compression on the discs and allowing them to separate. This reverse flow, combined with the grooved design of the discs, causes them to spin and effectively flushes the accumulated particles from their surfaces out through the drainage line.
Working Principle
Water enters the filter and passes through the disc stack. During operation, contaminants accumulate on the outer surface of the discs. This buildup obstructs the water flow, creating a pressure differential between the filter’s inlet and outlet. When this pressure differential reaches a threshold of 0.7 bar, a cleaning cycle is required, which can be initiated either manually or automatically
ADVANTAGES
Powerful Filtration, Smarter Design.
Engineered for High-Capacity Autonomy.
Aytok DDSC filters deliver fully autonomous, selfcleaning filtration for the most demanding industrial systems. Their innovative dual-body design provides a vast filtration surface to maximize flow rates and minimize backwash frequency. Engineered for industrial-grade durability, its robust construction integrates high-strength polyamide bodies with a precision backwash system. This fully hands-off system guarantees superior performance and unwavering reliability for your mission-critical operations.
