| Body Material | PA6GFR30 |
| Cartridge Material | PP |
| Maximum Working Pressure | 8 bar ; 116 Psi |
| Maximum Working Temperature | 60 °C ; 140°F |
| Filtration Sensitivity | 20, 50, 100, 130, 200 μ (micron) |
Cleaning Process
The pressure differential is manually monitored via the inlet and outlet manometers. An increase in pressure indicates the need for cleaning. To begin, shut off the water supply and depressurize the system. Then, remove the cover and extract the filter cartridge. The cartridge’s retaining screw must be loosened to separate the discs for a thorough cleaning with pressurized water. After cleaning, the filter is reassembled and ready for service.
Working Principle
Water enters the filter and passes through the filtration element (a set of discs). During operation, contaminants gradually accumulate on the surface of this element—the outer surface for discs. This buildup obstructs the water flow, creating a pressure differential between the filter’s inlet and outlet. Manual cleaning is required when this pressure differential reaches 0.7 bar
PD Plastic Manual Disc Filters
local_offer
PD
ADVANTAGES
Engineered for Lasting Durability
Aytok PD manual disc filters are built to withstand demanding operating conditions. Featuring a robust polyamide body, these filters are manufactured using high-quality materials for all critical components, ensuring excellent mechanical strength and long-term reliability. Designed for efficient particulate separation through disc filtration technology, the PD series delivers consistent performance across varying water qualities. This smart and versatile design guarantees years of trouble-free operation, providing dependable filtration you can rely on.
GENERAL FEATURES
| Body Material | PA6GFR30 |
| Cartridge Material | PP |
| Maximum Working Pressure | 8 bar ; 116 Psi |
| Maximum Working Temperature | 60 °C ; 140°F |
| Filtration Sensitivity | 20, 50, 100, 130, 200 μ (micron) |

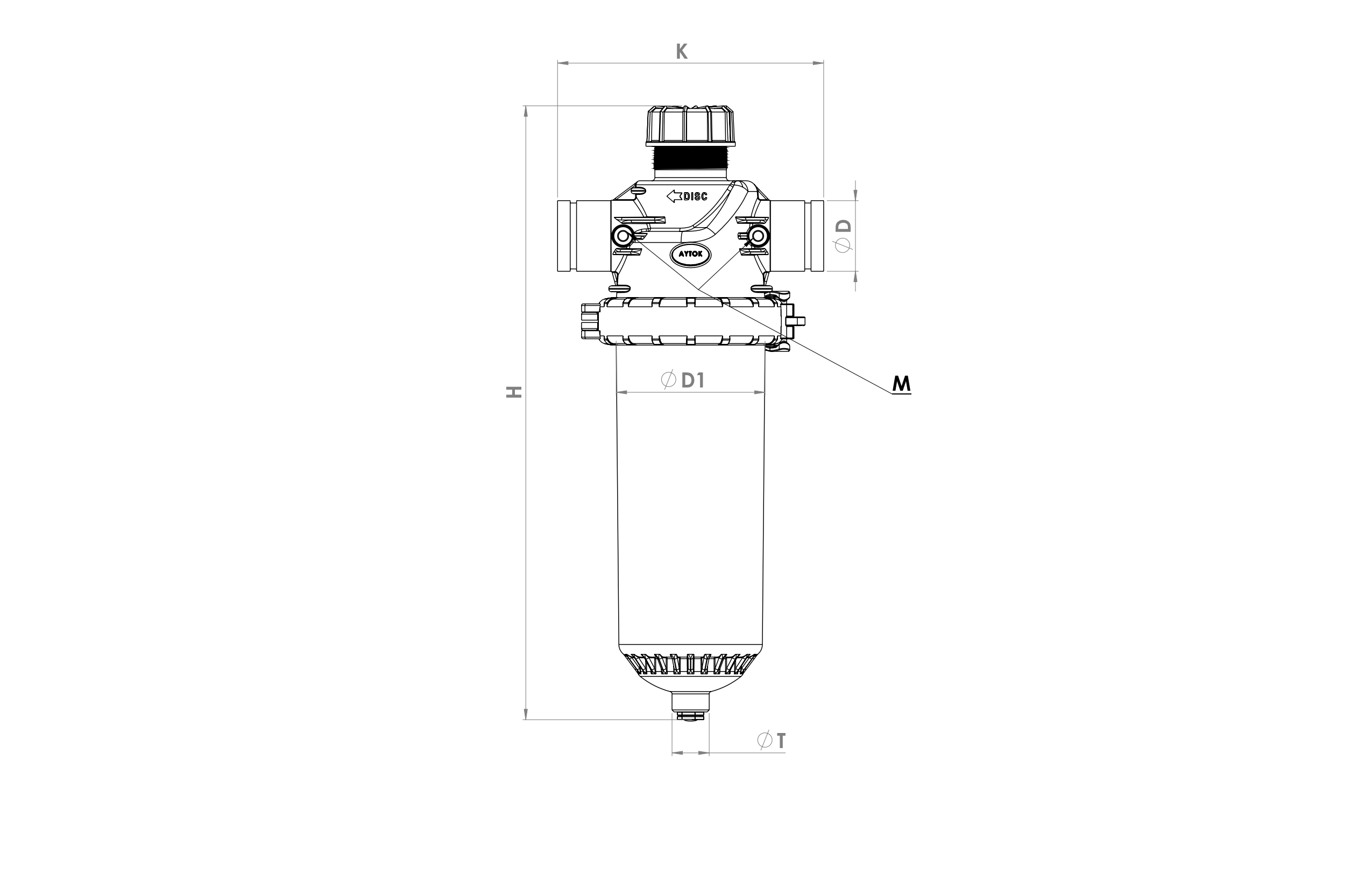

| CODE | D | M | T | D1 | H | K | Flow Rate | Filtration Area cm² |
Weight kg |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | DN | Inch | Inch | mm | mm | mm | m³/h | GPM(US) | |||
| PMD2 | 2 | 50 | 1/4 | 3/4 | 190 | 530 | 335 | 28 | 123,2 | 868 | 6 |
| PD2 | 2 | 50 | 1/4 | 3/4 | 190 | 650 | 335 | 30 | 132 | 1302 | 7 |
| PD25 | 2 1/2 | 65 | 1/4 | 3/4 | 190 | 650 | 335 | 35 | 154 | 1302 | 7,1 |
| PD3 | 3 | 80 | 1/4 | 3/4 | 190 | 650 | 335 | 45 | 198 | 1302 | 7,2 |
| PSD2 | 2 | 50 | 1/4 | 3/4 | 190 | 765 | 335 | 35 | 154 | 1805 | 8 |
| PSD25 | 2 1/2 | 65 | 1/4 | 3/4 | 190 | 765 | 335 | 40 | 176 | 1805 | 8,1 |
| PSD3 | 3 | 80 | 1/4 | 3/4 | 190 | 765 | 335 | 50 | 220 | 1805 | 8,2 |
Ürün Detayı
PD Plastic Manual Disc Filters
local_offer
PD
GENERAL FEATURES
Cleaning Process
The pressure differential is manually monitored via the inlet and outlet manometers. An increase in pressure indicates the need for cleaning. To begin, shut off the water supply and depressurize the system. Then, remove the cover and extract the filter cartridge. The cartridge’s retaining screw must be loosened to separate the discs for a thorough cleaning with pressurized water. After cleaning, the filter is reassembled and ready for service.
Working Principle
Water enters the filter and passes through the filtration element (a set of discs). During operation, contaminants gradually accumulate on the surface of this element—the outer surface for discs. This buildup obstructs the water flow, creating a pressure differential between the filter’s inlet and outlet. Manual cleaning is required when this pressure differential reaches 0.7 bar
ADVANTAGES
Powerful Filtration, Smarter Design.
Engineered for Lasting Durability
Aytok PD manual disc filters are built to withstand demanding operating conditions. Featuring a robust polyamide body, these filters are manufactured using high-quality materials for all critical components, ensuring excellent mechanical strength and long-term reliability. Designed for efficient particulate separation through disc filtration technology, the PD series delivers consistent performance across varying water qualities. This smart and versatile design guarantees years of trouble-free operation, providing dependable filtration you can rely on.
DÖKÜMANLAR
| CODE | D | M | T | D1 | H | K | Flow Rate | Filtration Area cm² |
Weight kg |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | DN | Inch | Inch | mm | mm | mm | m³/h | GPM(US) | |||
| PMD2 | 2 | 50 | 1/4 | 3/4 | 190 | 530 | 335 | 28 | 123,2 | 868 | 6 |
| PD2 | 2 | 50 | 1/4 | 3/4 | 190 | 650 | 335 | 30 | 132 | 1302 | 7 |
| PD25 | 2 1/2 | 65 | 1/4 | 3/4 | 190 | 650 | 335 | 35 | 154 | 1302 | 7,1 |
| PD3 | 3 | 80 | 1/4 | 3/4 | 190 | 650 | 335 | 45 | 198 | 1302 | 7,2 |
| PSD2 | 2 | 50 | 1/4 | 3/4 | 190 | 765 | 335 | 35 | 154 | 1805 | 8 |
| PSD25 | 2 1/2 | 65 | 1/4 | 3/4 | 190 | 765 | 335 | 40 | 176 | 1805 | 8,1 |
| PSD3 | 3 | 80 | 1/4 | 3/4 | 190 | 765 | 335 | 50 | 220 | 1805 | 8,2 |
