| Body Material | PA6GFR30 |
| Cartridge Material | SS304L, PA6GFR30 |
| Maximum Working Pressure | 8 bar ; 116 Psi |
| Maximum Working Temperature | 60 °C ; 140°F |
| Filtration Sensitivity | 20-2000 μ (micron) |
Cleaning Process
The pressure differential is manually monitored via the inlet and outlet manometers. An increase in pressure indicates the need for cleaning. To begin, shut off the water supply and depressurize the system. Then, remove the cover and extract the filter cartridge. A screen filter element is cleaned directly with pressurized water. After cleaning, the filter is reassembled and ready for service.
Working Principle
Water enters the filter and passes through the filtration element a fine screen). During operation, contaminants gradually accumulate on the surface of this element—the inner surface for screens. This buildup obstructs the water flow, creating a pressure differential between the filter’s inlet and outlet. Manual cleaning is required when this pressure differential reaches 0.7 bar.
PE Series - Plastic Manual Screen Filters
local_offer
PE
ADVANTAGES
Engineered for Lasting Durability
Aytok PE manual screen filters are built to withstand demanding field conditions. Featuring a robust polyamide body, these filters are manufactured using high-quality materials for all critical components.

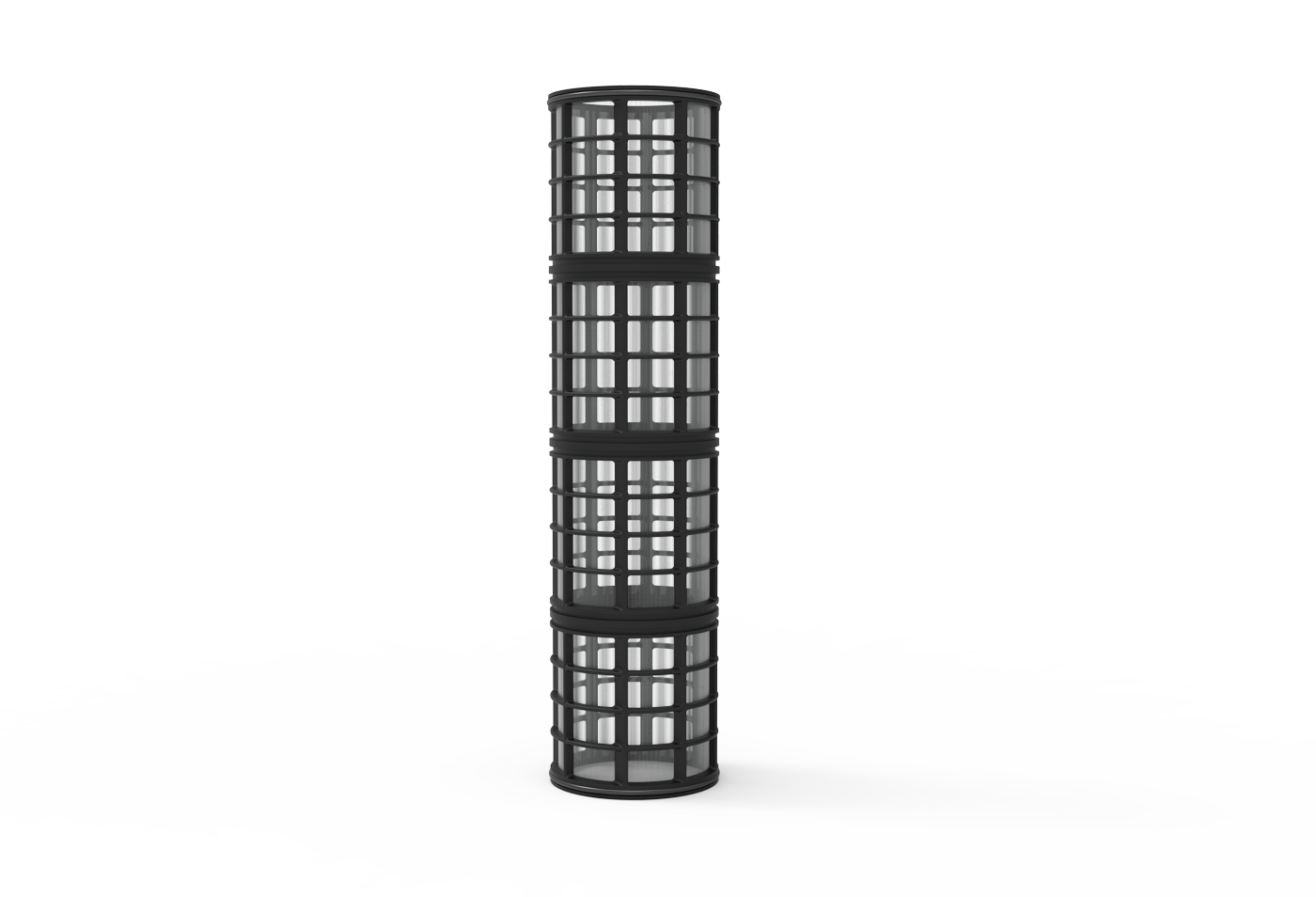

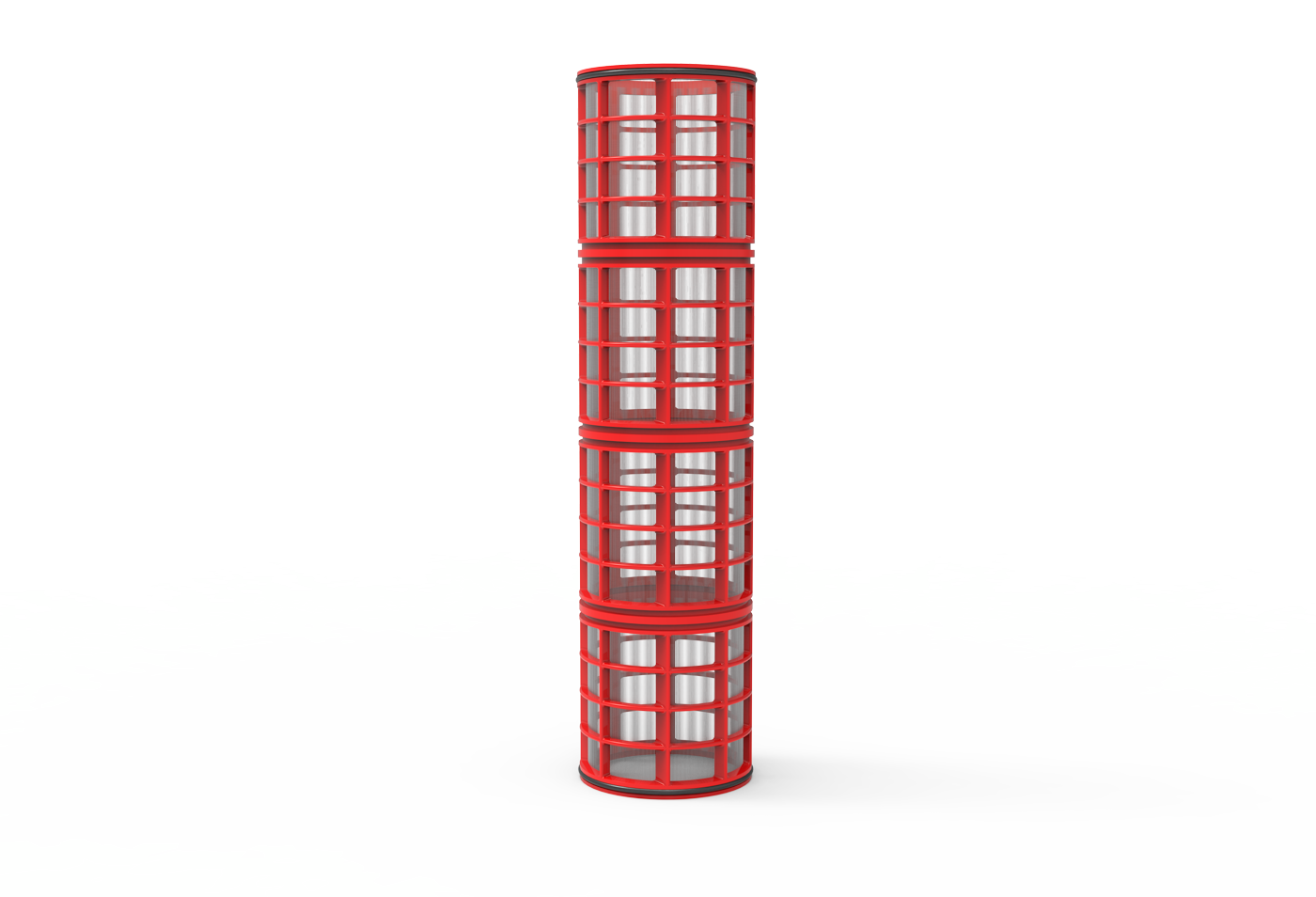

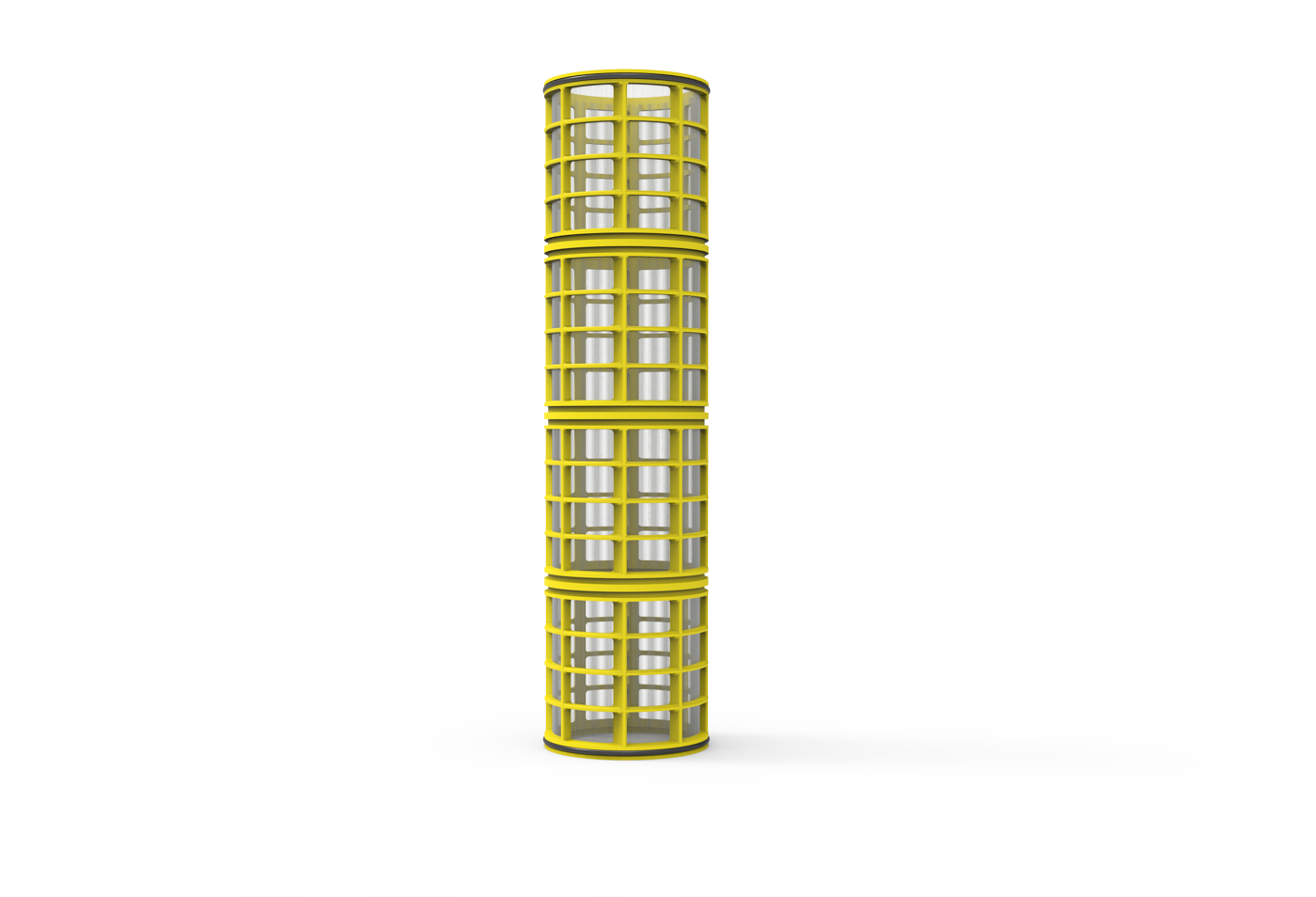

The screen models are equipped with a corrosion-resistant AISI 304 stainless steel screen, ensuring long service life and consistent filtration performance. This smart and versatile design guarantees years of trouble-free operation, delivering reliability you can count on.
GENERAL FEATURES
| Body Material | PA6GFR30 |
| Cartridge Material | SS304L, PA6GFR30 |
| Maximum Working Pressure | 8 bar ; 116 Psi |
| Maximum Working Temperature | 60 °C ; 140°F |
| Filtration Sensitivity | 20-2000 μ (micron) |
| CODE | D | M | T | D1 | H | K | Flow Rate | Filtration Area | Weight | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | DN | Inch | Inch | mm | mm | mm | m³/h | GPM(US) | cm² | kg | |
| PME2 | 2 | 50 | 1/4 | 3/4 | 190 | 530 | 335 | 28 | 123,2 | 760 | 5,2 |
| PE2 | 2 | 50 | 1/4 | 3/4 | 190 | 650 | 335 | 30 | 132 | 1140 | 5,4 |
| PE25 | 2 1/2 | 65 | 1/4 | 3/4 | 190 | 650 | 335 | 35 | 154 | 1140 | 5,5 |
| PE3 | 3 | 80 | 1/4 | 3/4 | 190 | 650 | 335 | 45 | 198 | 1140 | 5,6 |
| PSE2 | 2 | 50 | 1/4 | 3/4 | 190 | 765 | 335 | 35 | 154 | 1520 | 6,3 |
| PSE25 | 2 1/2 | 65 | 1/4 | 3/4 | 190 | 765 | 335 | 40 | 176 | 1520 | 6,4 |
| PSE3 | 3 | 80 | 1/4 | 3/4 | 190 | 765 | 335 | 50 | 220 | 1520 | 6,5 |
Ürün Detayı
PE Series - Plastic Manual Screen Filters
local_offer
PE
GENERAL FEATURES
Cleaning Process
The pressure differential is manually monitored via the inlet and outlet manometers. An increase in pressure indicates the need for cleaning. To begin, shut off the water supply and depressurize the system. Then, remove the cover and extract the filter cartridge. A screen filter element is cleaned directly with pressurized water. After cleaning, the filter is reassembled and ready for service.
Working Principle
Water enters the filter and passes through the filtration element a fine screen). During operation, contaminants gradually accumulate on the surface of this element—the inner surface for screens. This buildup obstructs the water flow, creating a pressure differential between the filter’s inlet and outlet. Manual cleaning is required when this pressure differential reaches 0.7 bar.
ADVANTAGES
Powerful Filtration, Smarter Design.
Engineered for Lasting Durability
Aytok PE manual screen filters are built to withstand demanding field conditions. Featuring a robust polyamide body, these filters are manufactured using high-quality materials for all critical components.
The screen models are equipped with a corrosion-resistant AISI 304 stainless steel screen, ensuring long service life and consistent filtration performance. This smart and versatile design guarantees years of trouble-free operation, delivering reliability you can count on.
DÖKÜMANLAR
| CODE | D | M | T | D1 | H | K | Flow Rate | Filtration Area | Weight | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | DN | Inch | Inch | mm | mm | mm | m³/h | GPM(US) | cm² | kg | |
| PME2 | 2 | 50 | 1/4 | 3/4 | 190 | 530 | 335 | 28 | 123,2 | 760 | 5,2 |
| PE2 | 2 | 50 | 1/4 | 3/4 | 190 | 650 | 335 | 30 | 132 | 1140 | 5,4 |
| PE25 | 2 1/2 | 65 | 1/4 | 3/4 | 190 | 650 | 335 | 35 | 154 | 1140 | 5,5 |
| PE3 | 3 | 80 | 1/4 | 3/4 | 190 | 650 | 335 | 45 | 198 | 1140 | 5,6 |
| PSE2 | 2 | 50 | 1/4 | 3/4 | 190 | 765 | 335 | 35 | 154 | 1520 | 6,3 |
| PSE25 | 2 1/2 | 65 | 1/4 | 3/4 | 190 | 765 | 335 | 40 | 176 | 1520 | 6,4 |
| PSE3 | 3 | 80 | 1/4 | 3/4 | 190 | 765 | 335 | 50 | 220 | 1520 | 6,5 |
