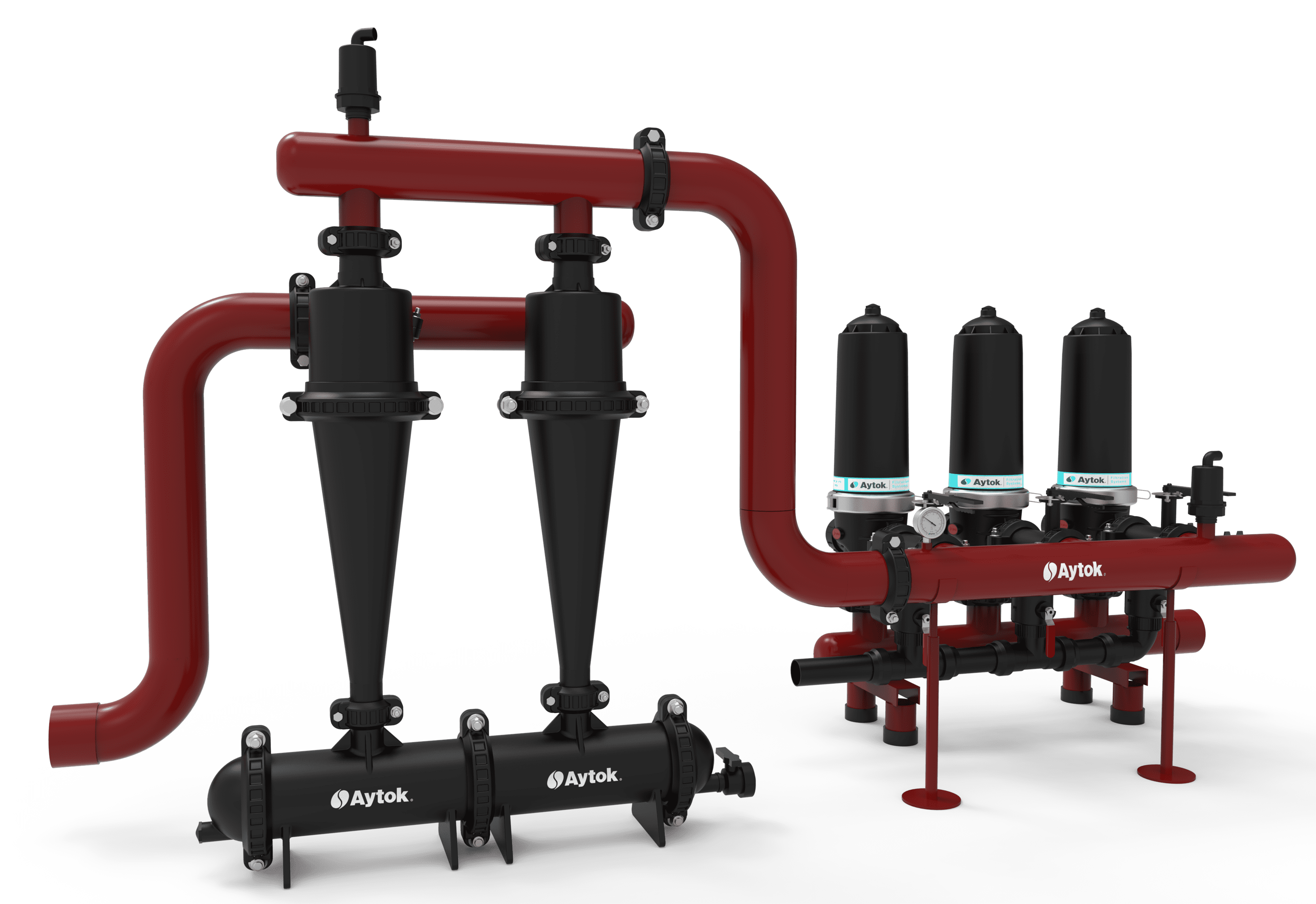

Plastic Manual Disc Filter Systems With Hydrocyclone

Plastic Filter Types: Manual Disc (PSD), Self Clean Disc (PSC) Disc Material: PP Manifold Material: Steel / Stainless Steel / Plastic Maximum Working Pressure: 6 Bar (87 PSI) Minimum Working Pressure: 2 Bar (29 PSI) Maximum Working Temperature : 60 °C (140 °F) Back Flush Operation Criteria: Pressure Differential Back Flush Controlling Unit : Manual Filtration Degree: 20-50-100-130 micron (µ)

GENEL ÖZELLİKLER

Plastic Filter Types: Manual Disc (PSD), Self Clean Disc (PSC)
Disc Material: PP
Manifold Material: Steel / Stainless Steel / Plastic
Maximum Working Pressure: 6 Bar (87 PSI)
Minimum Working Pressure: 2 Bar (29 PSI)
Maximum Working Temperature : 60 °C (140 °F)
Back Flush Operation Criteria: Pressure Differential
Back Flush Controlling Unit : Manual
Filtration Degree: 20-50-100-130 micron (µ)

CODE SYSTEM CAPACITY (m³/h)
P2020+M222  2"PLASTIC HYDROCYCLONE 2X2"PLASTIC DISC FILTER SYSTEM 10 - 30
P2030+M323 3"PLASTIC HYDROCYCLONE 2X3"PLASTIC DISC FILTER SYSTEM 30-50
2xP2025+M433 4"2X2½"PLASTIC HYDROCYCLONE 3X3"PLASTIC DISC FILTER SYSTEM 50-70
2xP2030+M443 4"2X3"PLASTIC HYDROCYCLONE 4X3"PLASTIC DISC FILTER SYSTEM 70-100
