Body Material: PA6GFR30 Screen Material: SS316L Maximum Working Pressure: 6 Bar (87 PSI) Minimum Working Pressure: 1 Bar (15 PSI) Maximum Working Temperature : 60 °C (140 °F) Back Flush Operation Criteria: Pressure Differencal Back Flush Controlling Unit : Manual Filtration Degree: 20-2000 micron (µ) Painting Method: Electrostratic Powder Coating Painting Material: Epoxy Polyester
GENEL ÖZELLİKLER
Body Material: PA6GFR30
Screen Material: SS316L
Maximum Working Pressure: 6 Bar (87 PSI)
Minimum Working Pressure: 1 Bar (15 PSI)
Maximum Working Temperature : 60 °C (140 °F)
Back Flush Operation Criteria: Pressure Differencal
Back Flush Controlling Unit : Manual
Filtration Degree: 20-2000 micron (µ)
Painting Method: Electrostratic Powder Coating
Painting Material: Epoxy Polyester

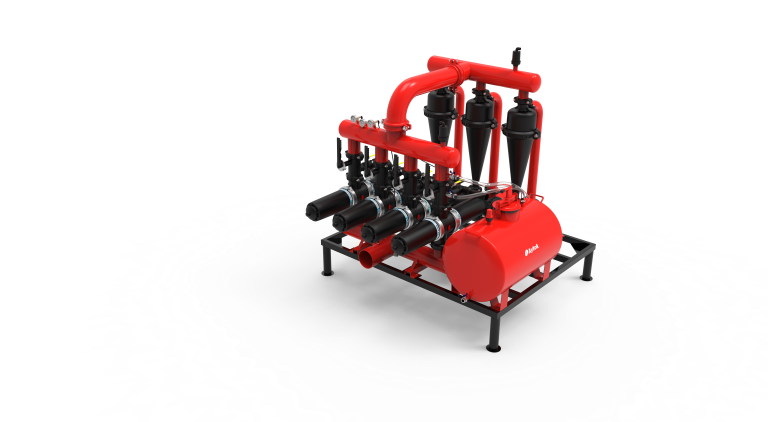

| CODE | SYSTEM | CAPACITY (m³/h) |
| MF104HS | 4” 2X3” PLASTIC HYDROCYCLONE + MF104 | 70-100 |
| MF105HS | 5" 2X3" PLASTIC HYDROCYCLONE + MF105 | 100-120 |
| MF106HS | MF106HS 6" 3X3" PLASTIC HYDROCYCLONE + MF106 | 120-180 |
| MF126SHS | MF126SHS 6" 4X3" PLASTIC HYDROCYCLONE + MF126S | 120-220 |
