Hidrociclone de metal
Technical Specification

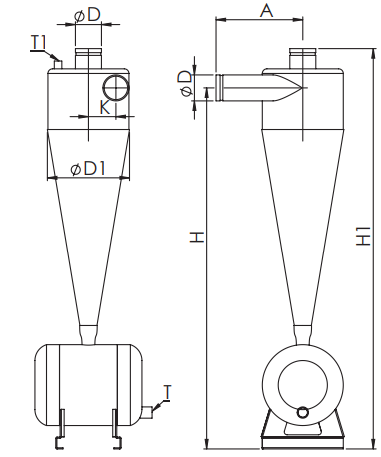

| CODE | D | D1 | T | T1 | K | A | H | H1 | FLOW | MAX.PRESSURE | WEIGHT |
| inch | mm | m³/h | bar | kg | |||||||
| 2020 | 2 | 11 | ¾ | ½ | 110 | 250 | 1275 | 1450 | 20 | 8 | 27 |
| 2025 | 2½ | 11 | 1 | ½ | 102 | 300 | 1335 | 1530 | 30 | 8 | 33 |
| 2030 | 3 | 11 | 1 | ½ | 95 | 300 | 1330 | 1530 | 40 | 8 | 35 |
| 2040 | 4 | 11 | 1 | ½ | 82,5 | 300 | 1320 | 1530 | 60 | 8 | 38 |
| 2040S | 4 | 13 | 2 | ¾ | 102,5 | 350 | 1365 | 1570 | 80 | 8 | 42 |
| 2050 | 5 | 15 | 2 | 1 | 120 | 400 | 1520 | 1745 | 120-140 | 8 | 65 |
| 2060 | 6 | 18 | 2 | 1 | 142,5 | 450 | 1750 | 2035 | 160-200 | 8 | 92 |
