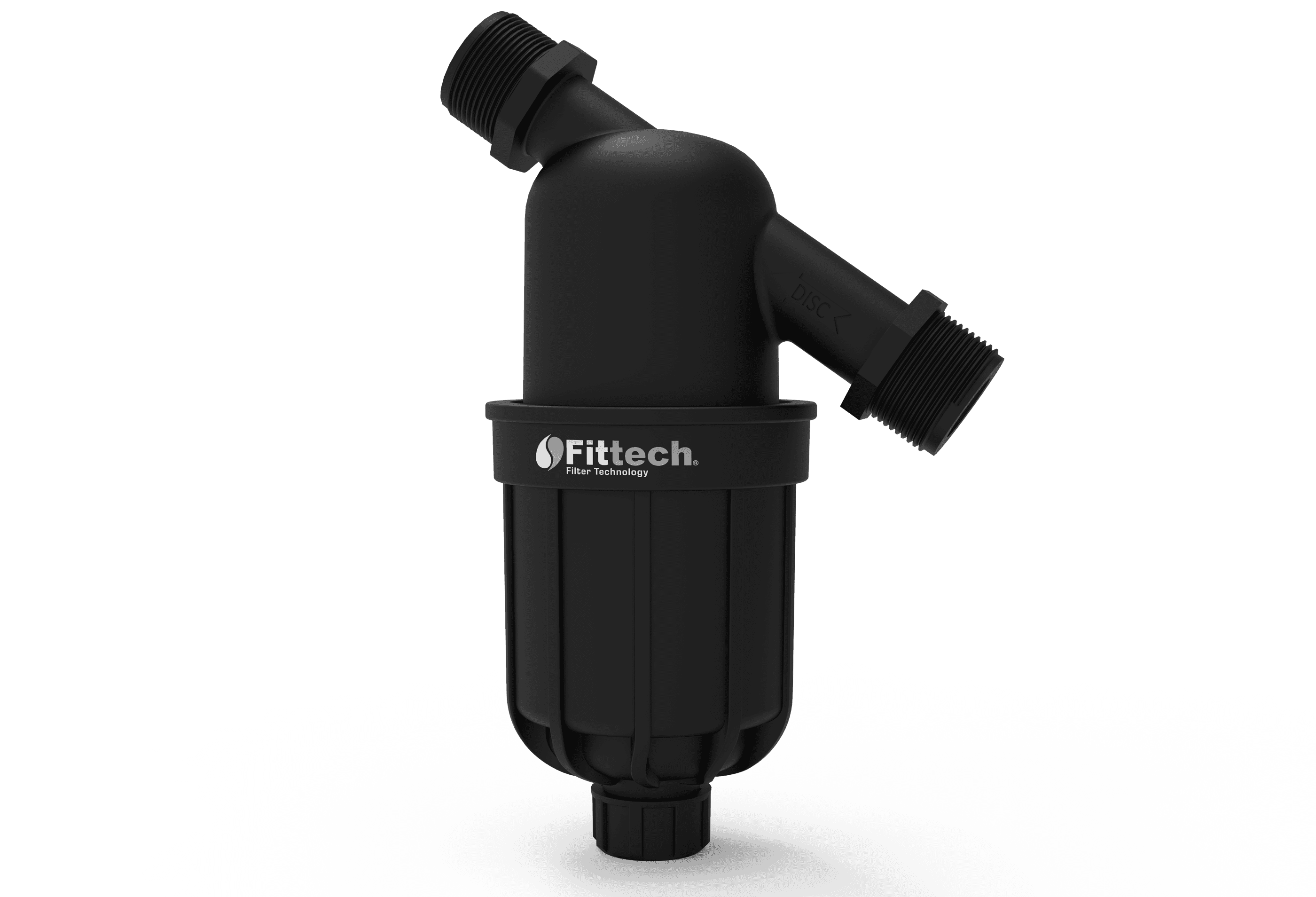

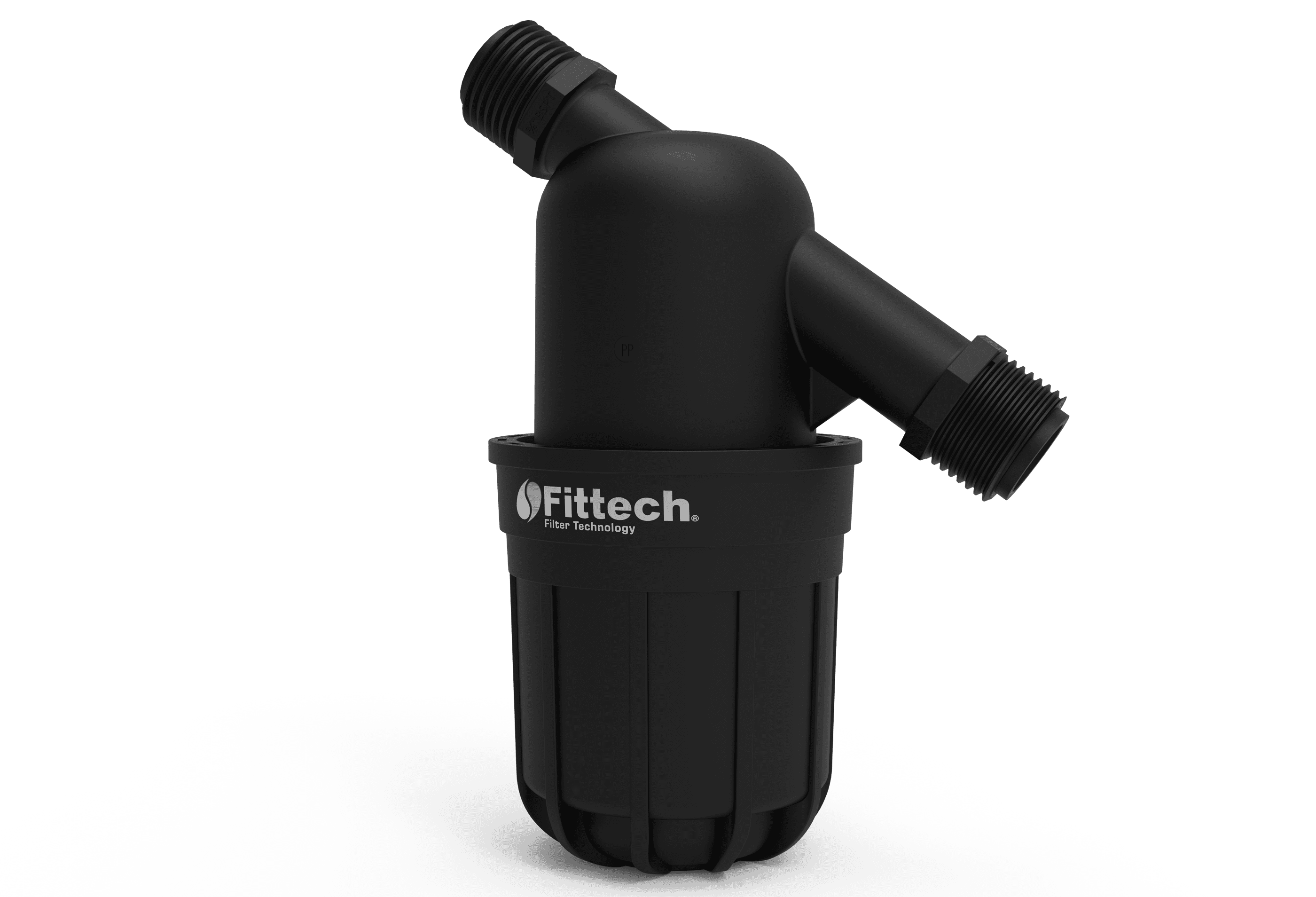

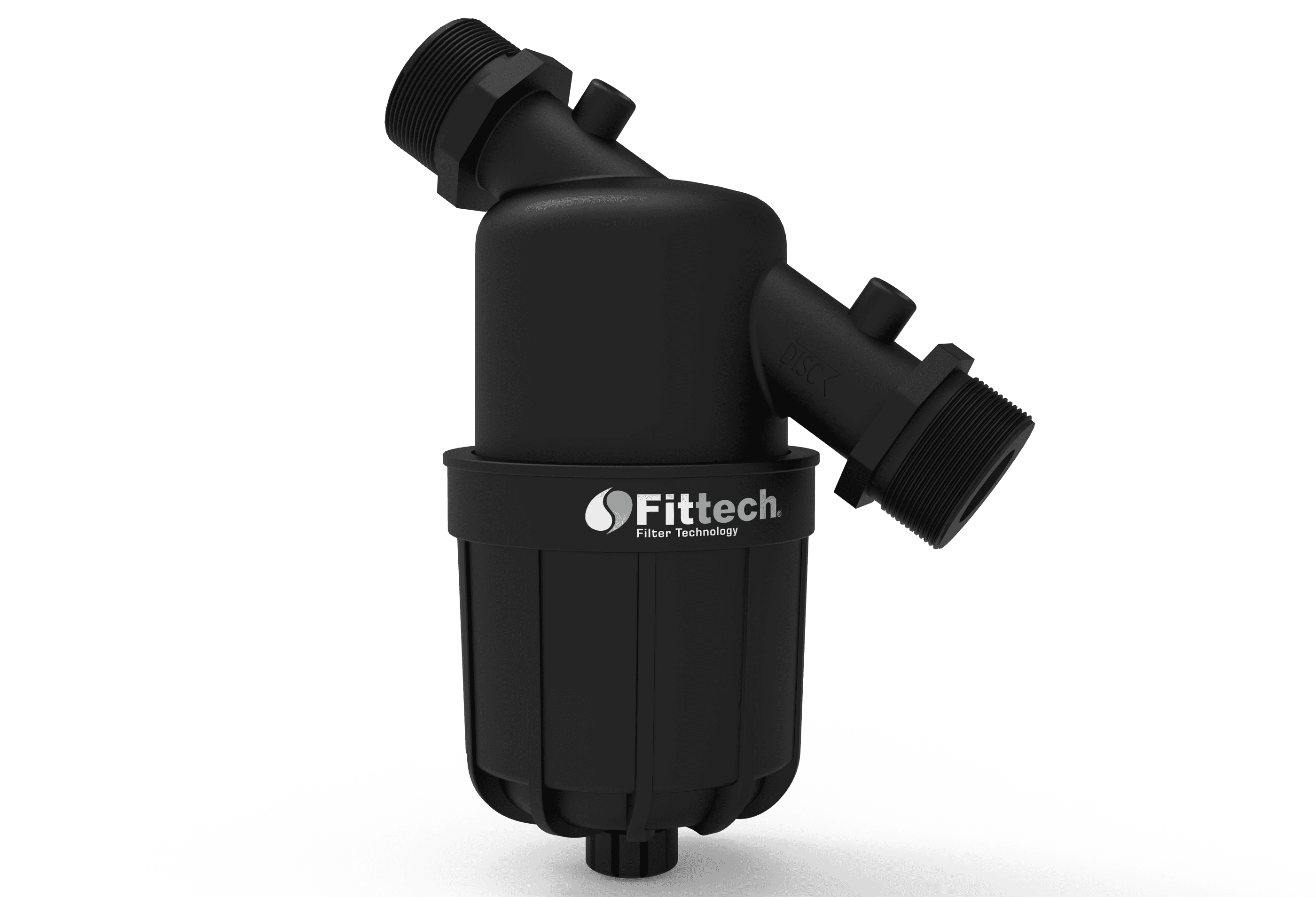

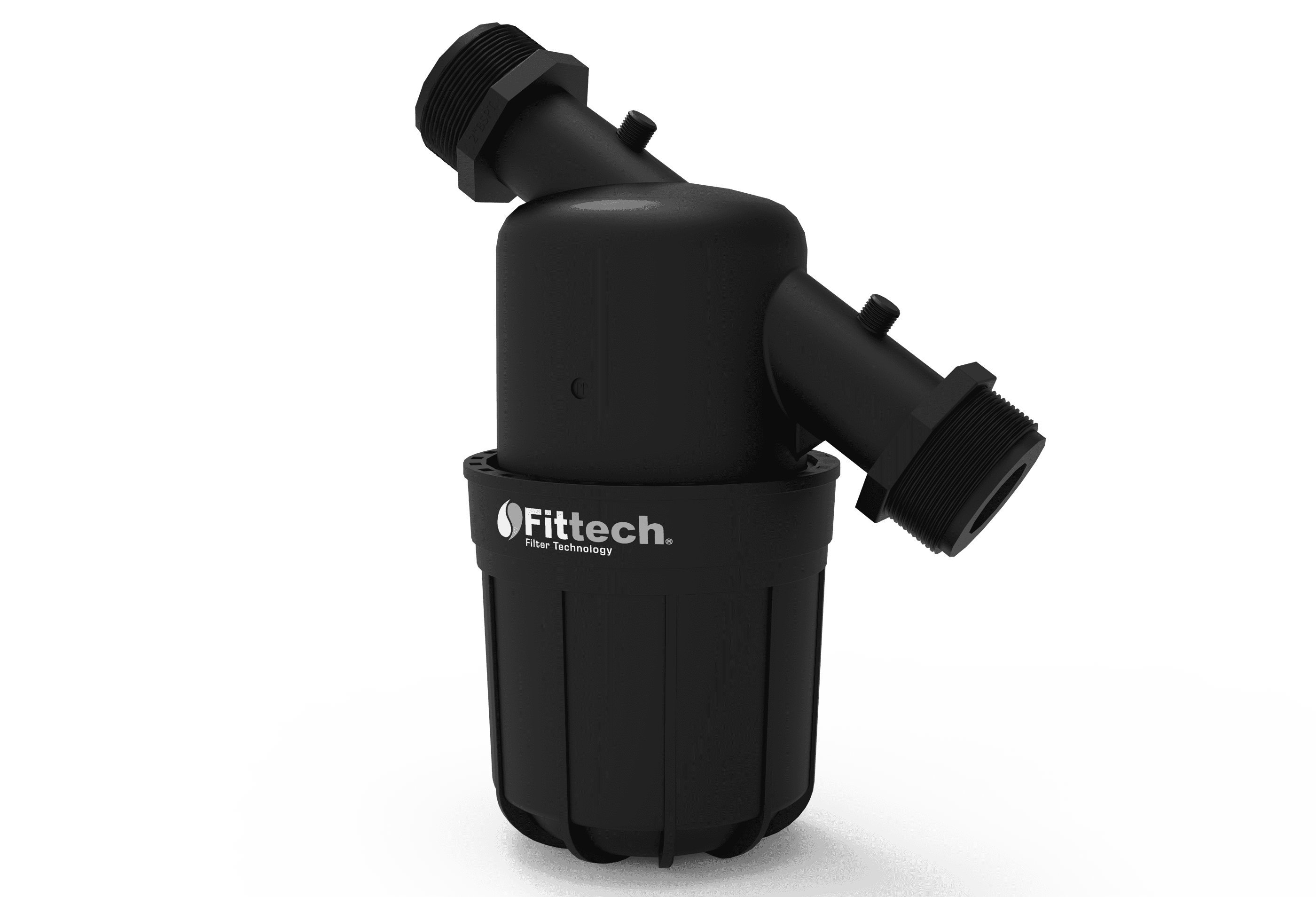

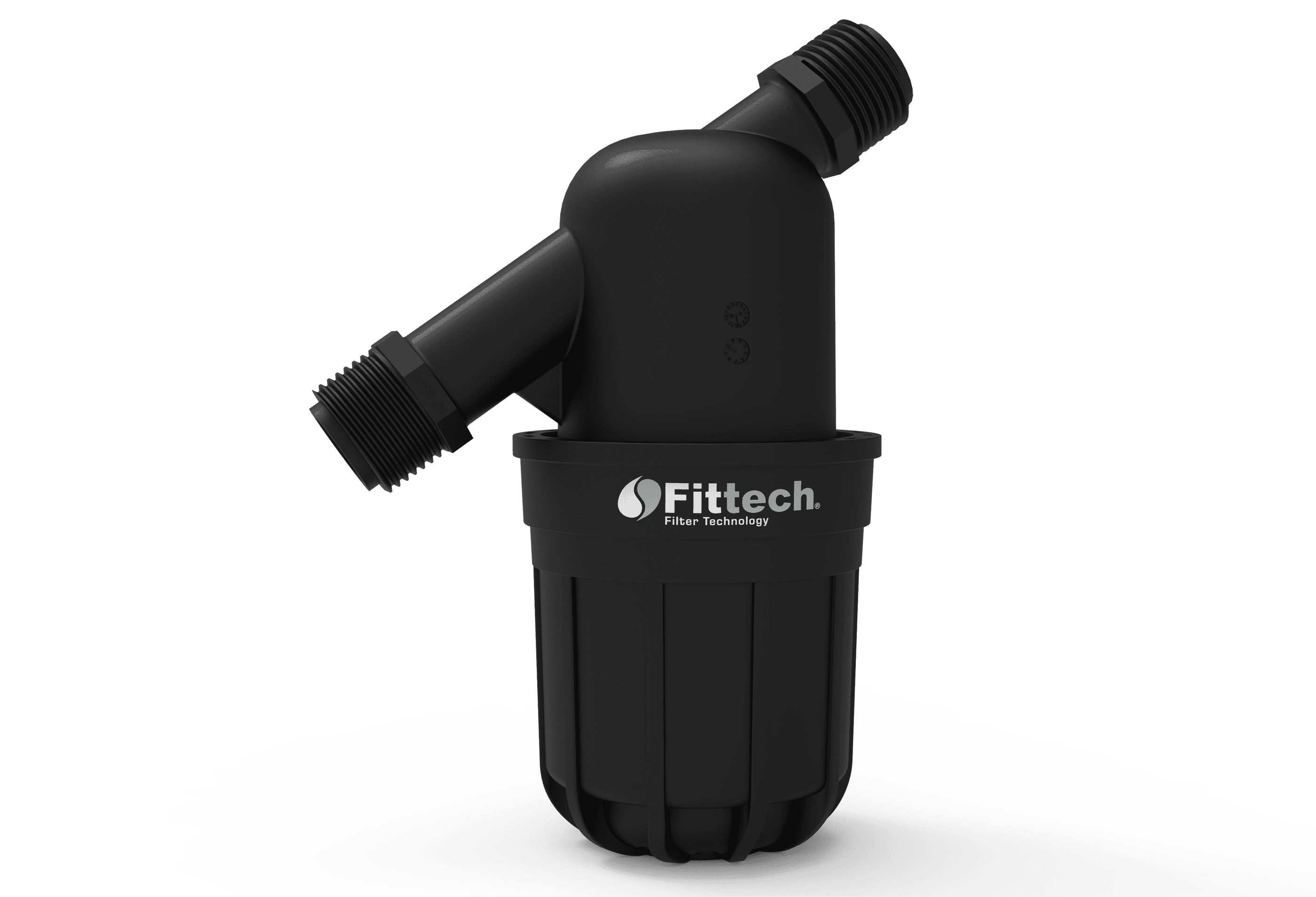

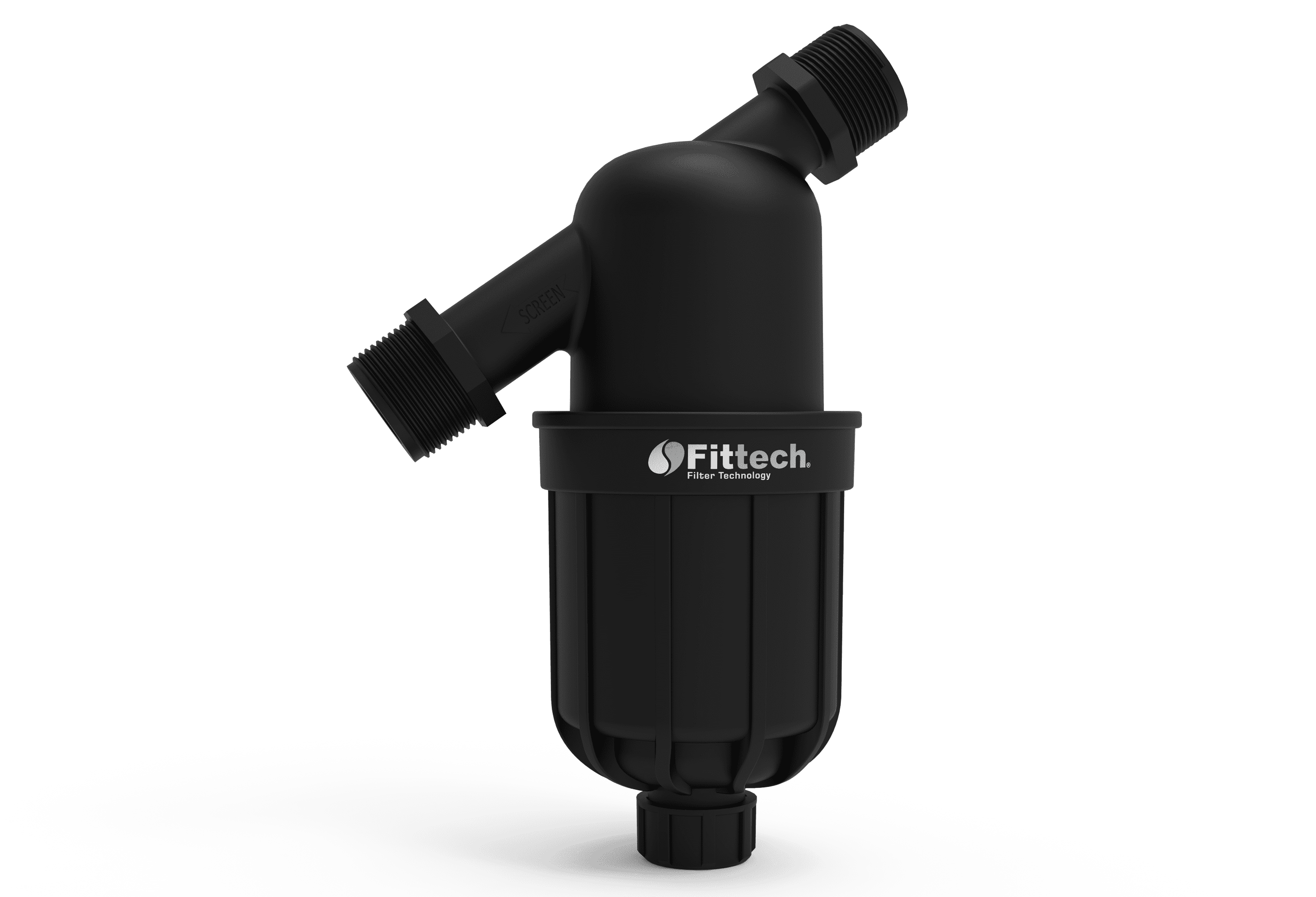

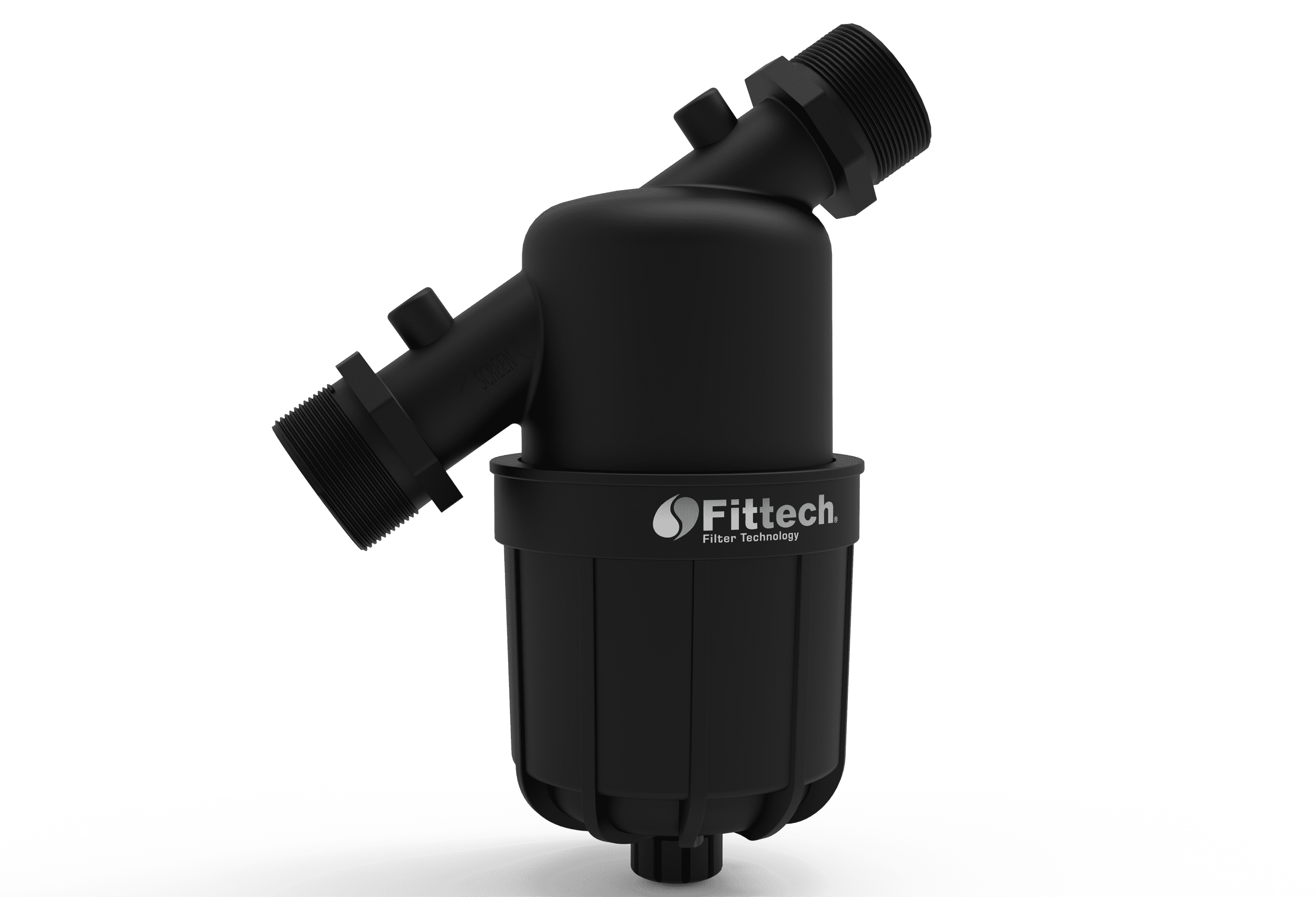

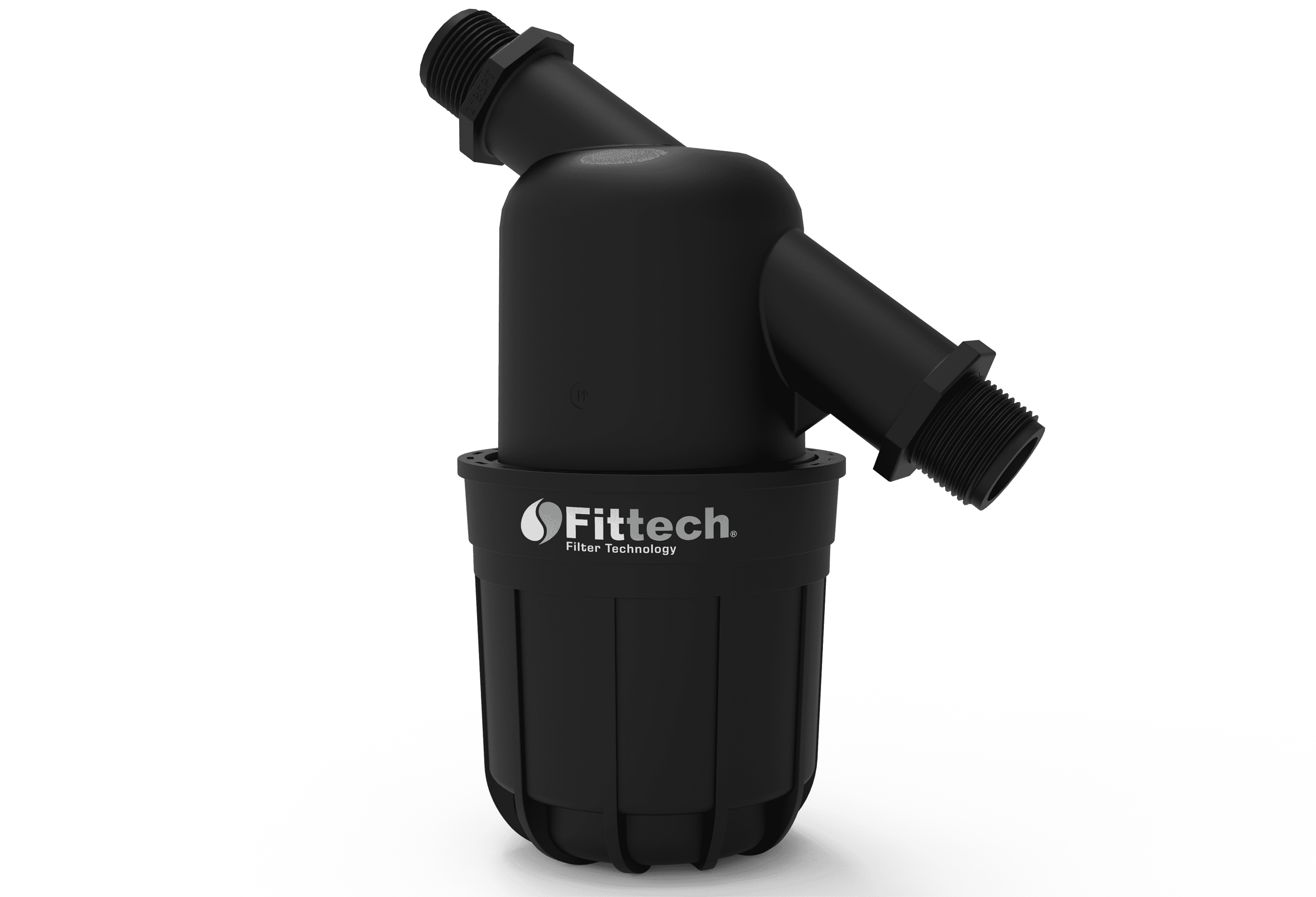

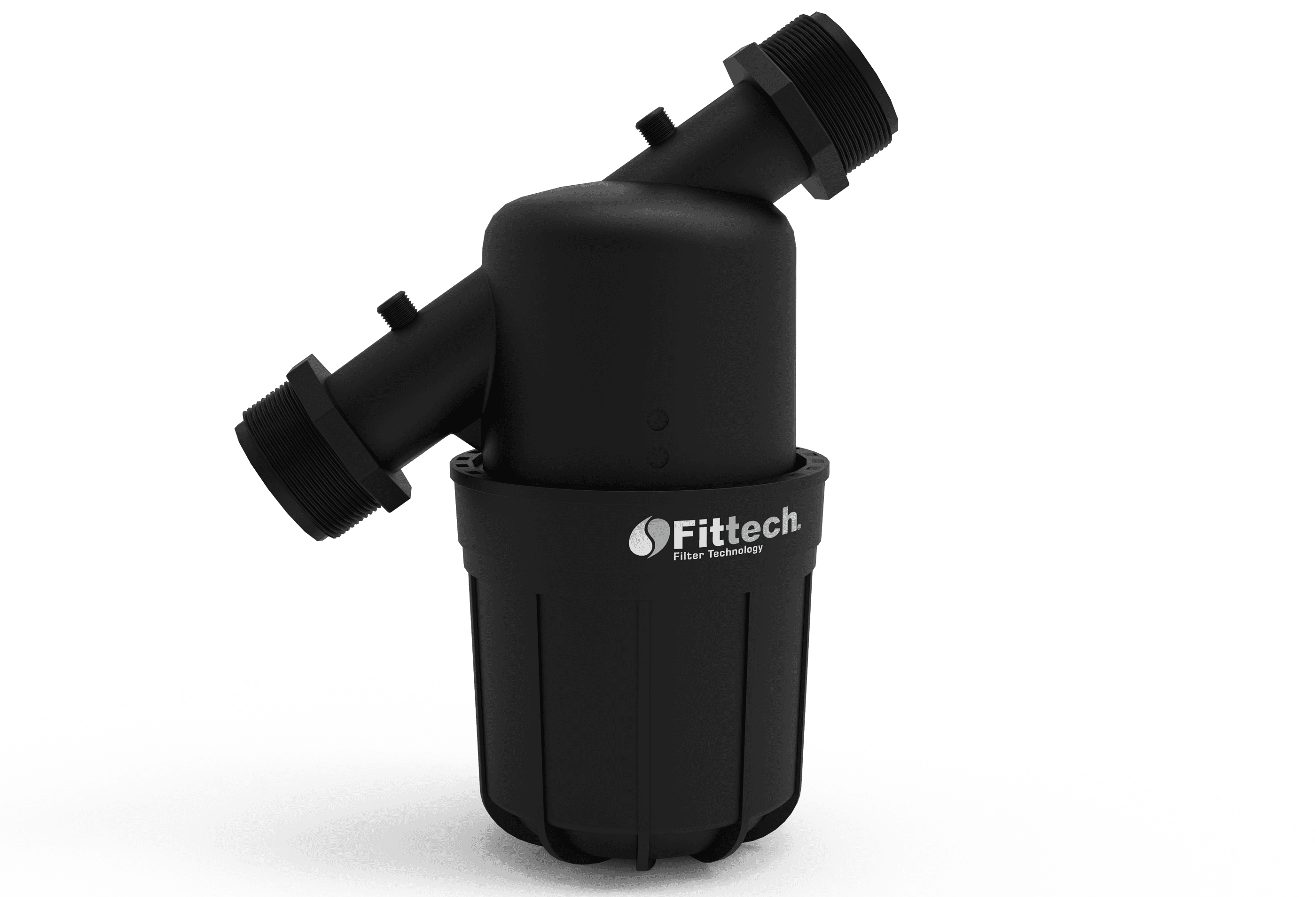

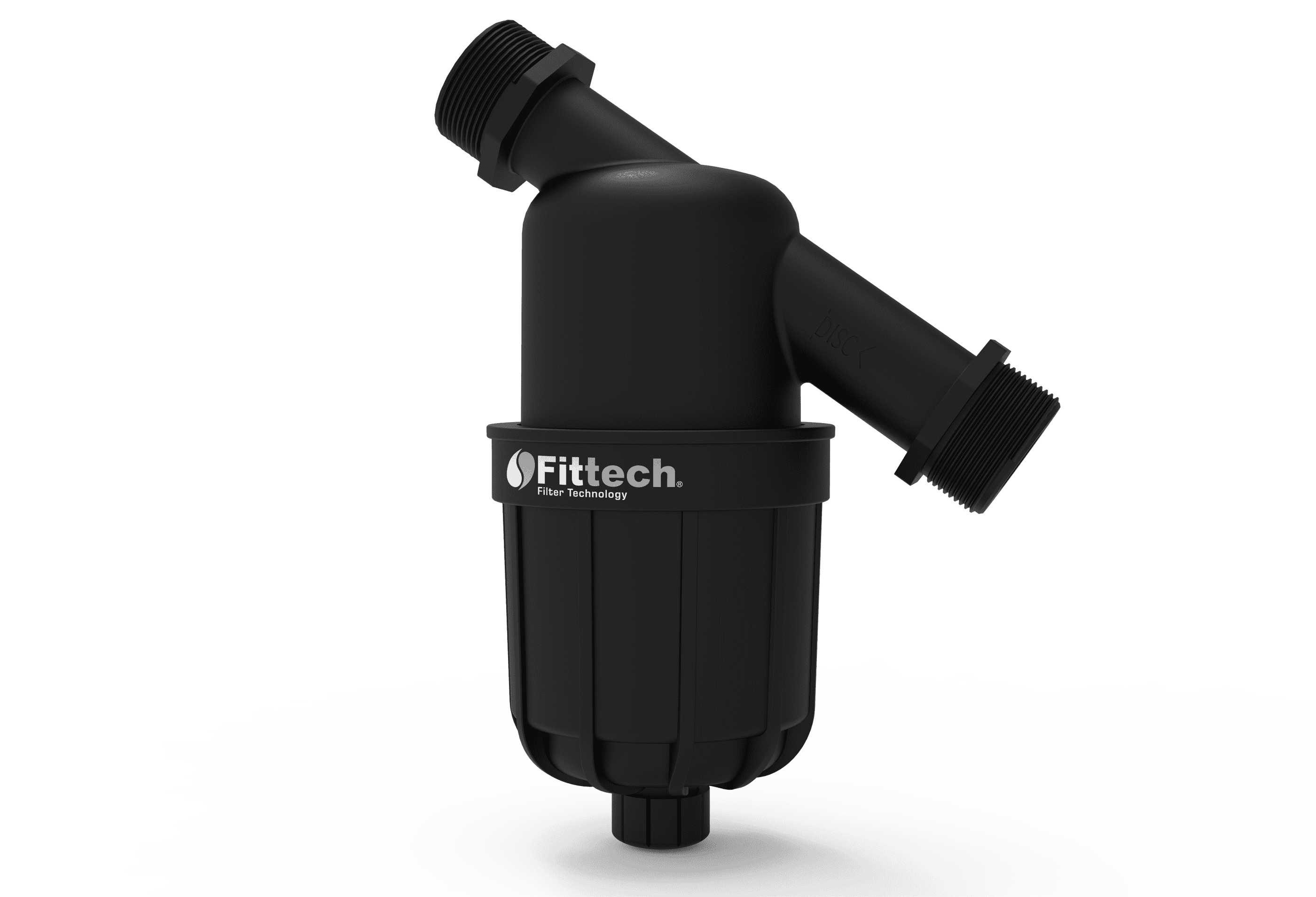

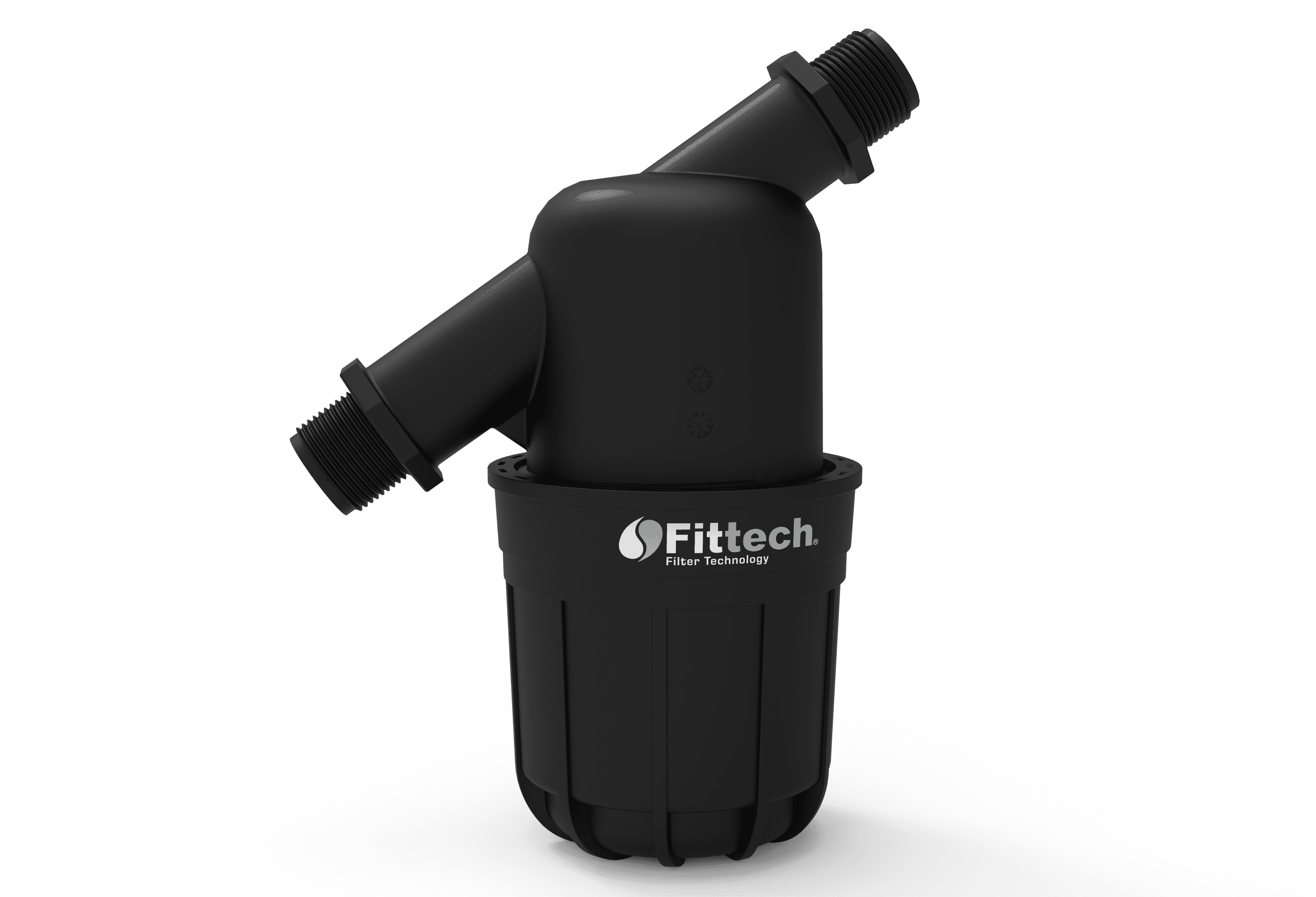

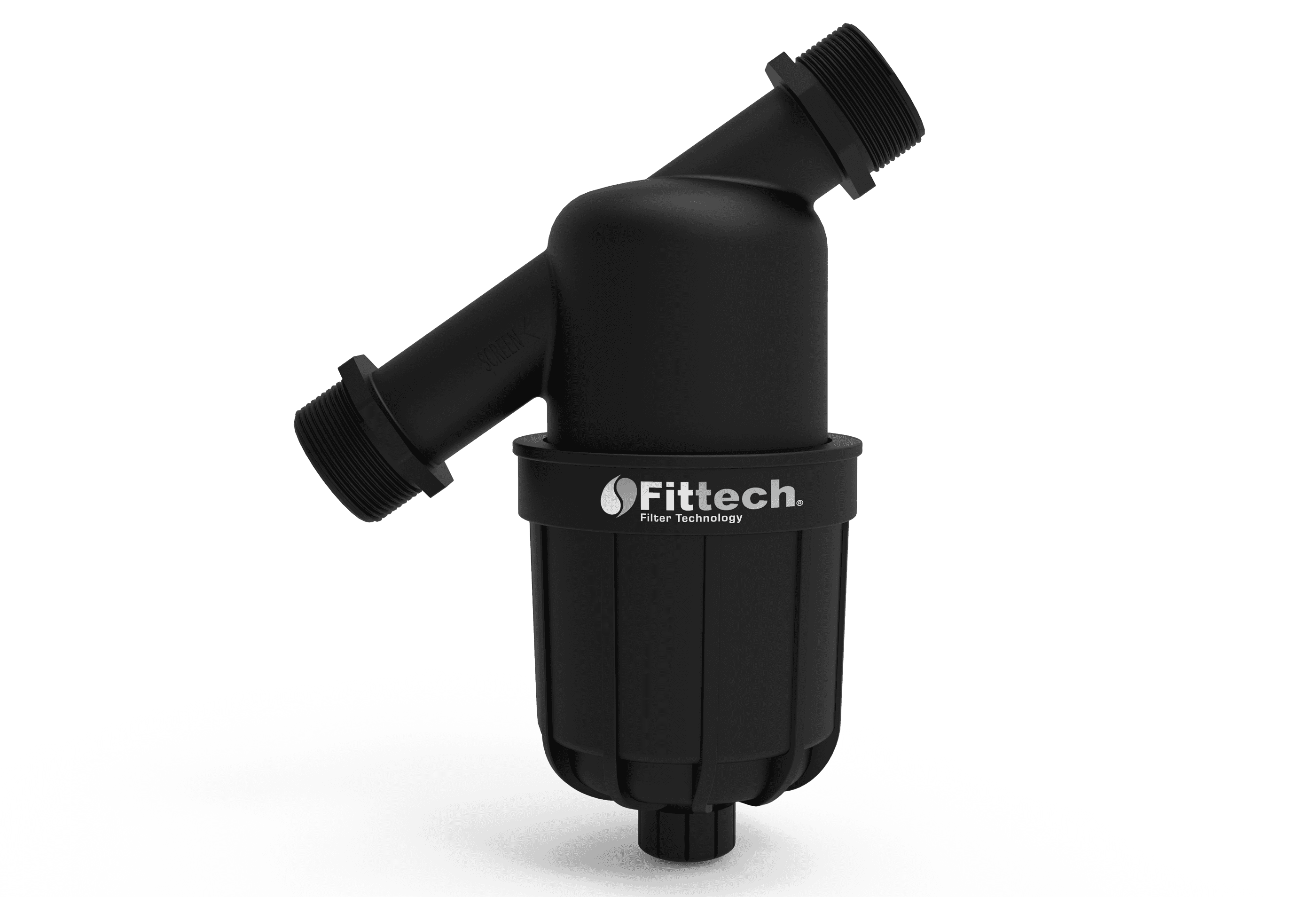

Aytok MPD-MPE filters are used effectively to meet the filtering needs of water required for low-capacity usage areas. Due to its small size, it is used effectively in many areas. It is widely used in fields such as garden irrigation systems, fertilization systems, and small-scale cooling water filtration.
General Characteristic
Body Material : PP
Cartridge Material: Disc Cartridge(PP), Screen Cartridge (SS 304+PP )
Maximum Working Pressure : 8 Bar (116 PSI)
Maximum Working Temperature: 60 °C/ 140 °F
Filtration Degree: 130 micron
Technical Specifications

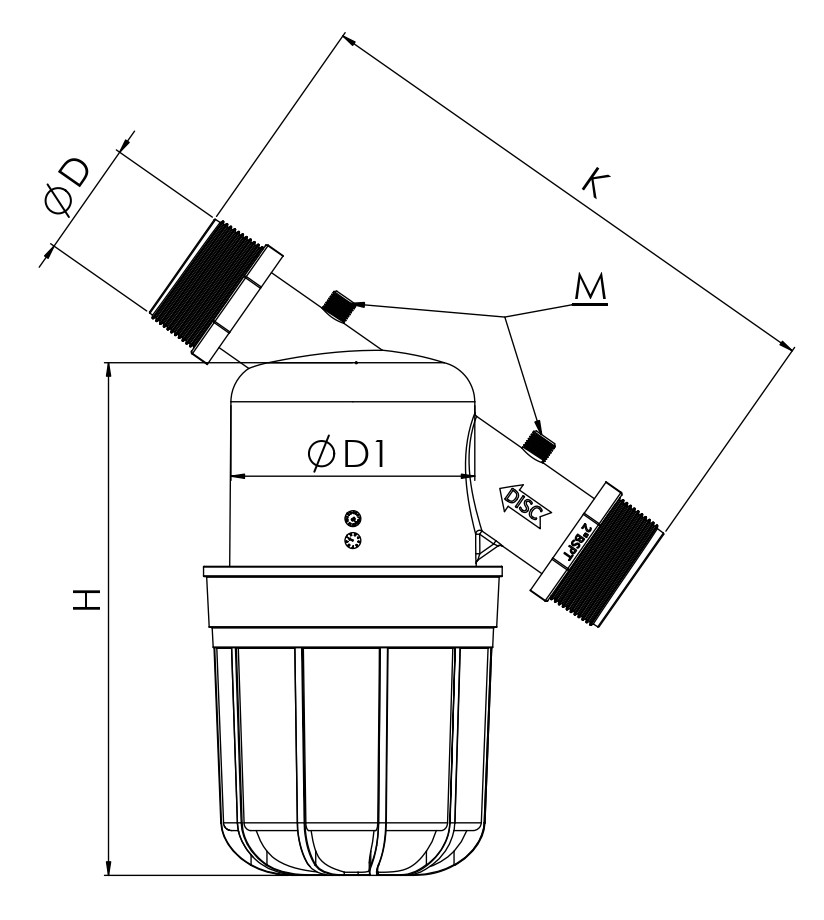

| CODE | D | M | D1 | H | K | FLOW | FILTRATION AREA | WEIGHT |
| inch | mm | m³/h | cm² | kg | ||||
| MNPE34 | 3/4 | - | 68 | 190 | 160 | 5 | 165 | 0,3 |
| MNPD34 | 3/4 | - | 68 | 190 | 160 | 5 | 185 | 0,45 |
| MNPE10 | 1 | - | 68 | 190 | 160 | 6 | 165 | 0,3 |
| MNPD10 | 1 | - | 68 | 190 | 160 | 6 | 185 | 0,45 |
| MDPE10 | 1 | - | 96 | 230 | 220 | 10 | 325 | 0,75 |
| MDPD10 | 1 | - | 96 | 230 | 220 | 10 | 300 | 1 |
| MDPE14 | 1 1/4 | - | 96 | 230 | 220 | 13 | 325 | 0,75 |
| MDPD14 | 1 1/4 | - | 96 | 230 | 220 | 13 | 300 | 1 |
| MDPE15 | 1½ | - | 96 | 230 | 220 | 15 | 300 | 0,75 |
| MDPD15 | 1½ | - | 96 | 230 | 220 | 15 | 325 | 1 |
| MXPE15 | 1½ | 1/4 | 120 | 280 | 270 | 20 | 515 | 1,2 |
| MXPD15 | 1½ | 1/4 | 120 | 280 | 270 | 20 | 550 | 1,5 |
| MXPE20 | 2 | 1/4 | 120 | 280 | 270 | 25 | 515 | 1,2 |
| MXPD20 | 2 | 1/4 | 120 | 280 | 270 | 25 | 550 | 1,5 |
Filter Cleaning
The pressure differance between the inlet and outlet is observed manually from the manometers. If the pressure difference increases, the water flow is cut off and the system is stopped. The cover is removed. Then the cartridge istaken out. If The filter is screen filter the screen is directly cleaned by pressurized water and reassemblied. If the filter is disc filter the disc cartridge screw is loosed and the discs are cleaned by pressurized water. Then the filter is reassemblied.
