| Body Material | PA6GFR30 |
| Cartridge Material | SS304L, PA6GFR30 |
| Maximum Working Pressure | 8 bar ; 116 Psi |
| Minimum Working Pressure | 1 bar ; 14.5 Psi |
| Maximum Working Temperature | 60 °C ; 140°F |
| Control System | Semi Automatic Control |
| Filtration Sensitivity | 20-200 μ (micron) |
Cleaning Process
Contaminants suspended at the center of the screen by the water’s continuous circular motion are expelled through a discharge valve during the backwash cycle. The initiation of this cycle depends on the filter’s configuration. In semi-automatic systems, the process is manual, where the operator monitors the pressure gauges at the inlet and outlet and, upon observing an increased pressure differential, manually opens the valve to discharge the accumulated contaminants
Working Principle

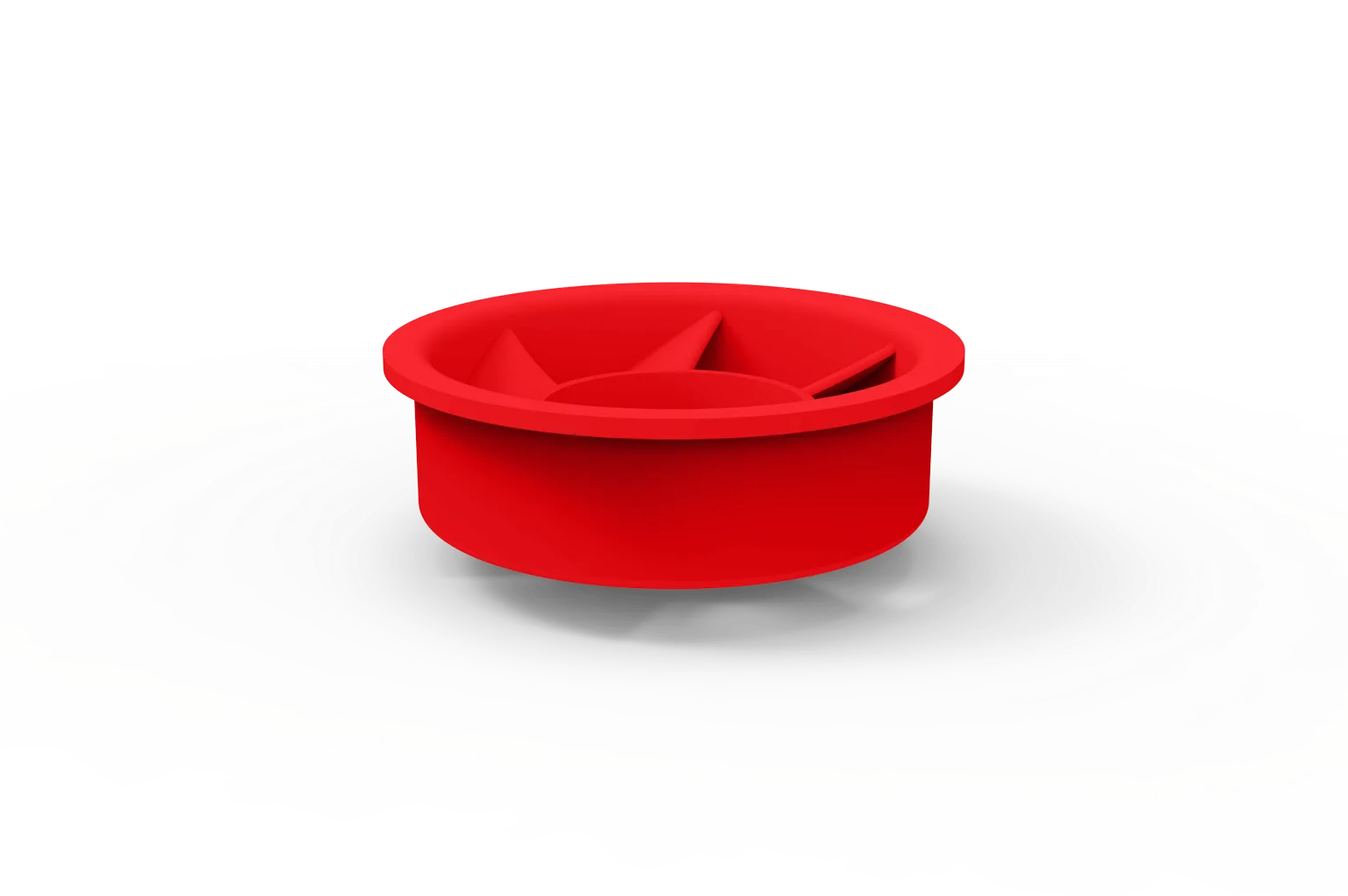

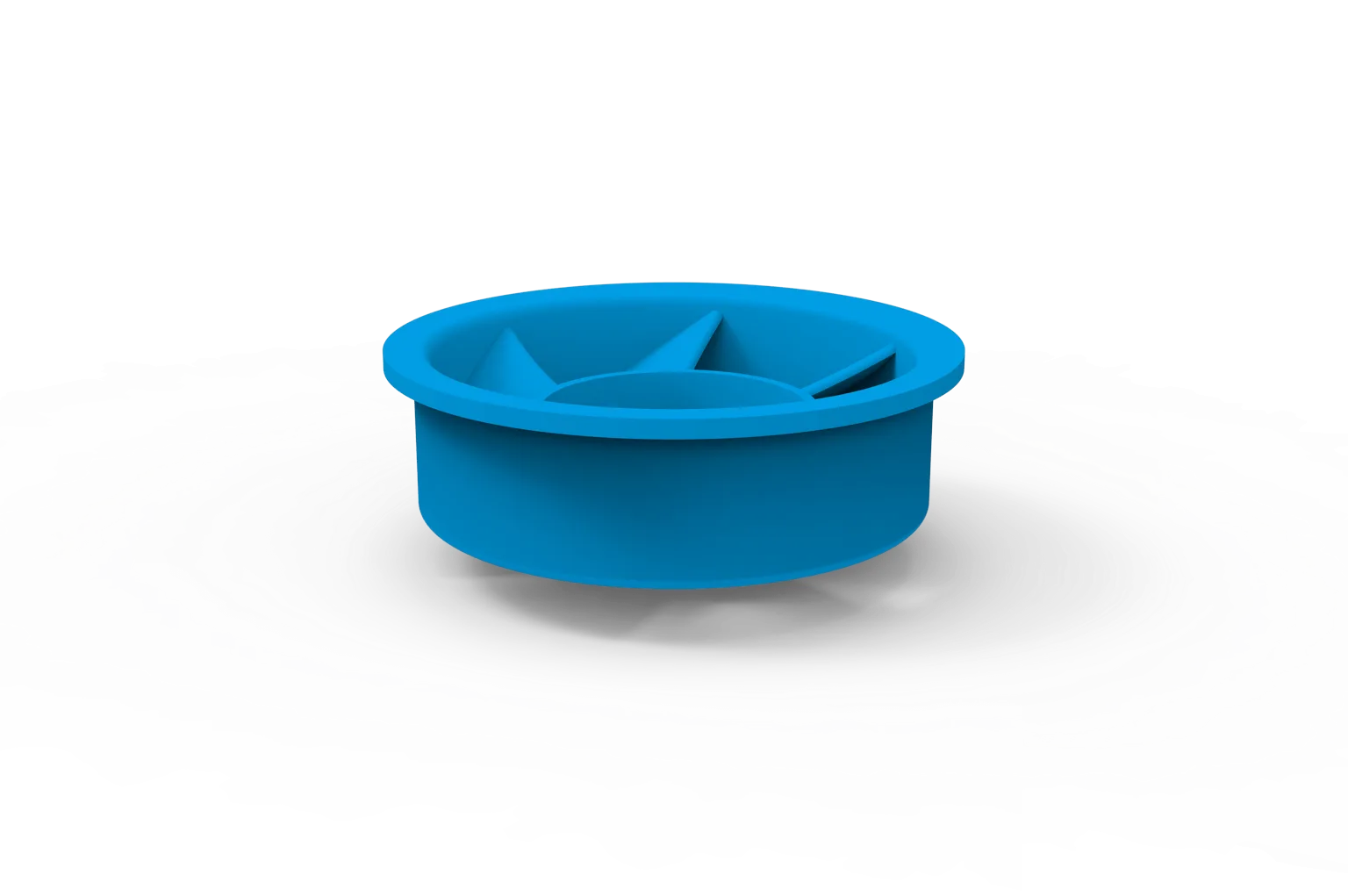

The operating principle of Hurricane Filters is based on cyclonic separation. As water enters the filter, it is guided by internal helix blades that induce a powerful circular motion, or vortex. This cyclonic action generates a centrifugal force that serves two purposes: it prevents contaminants from accumulating on the screen surface, thereby minimizing clogging, and it directs the suspended particles toward the center of the filter for collection.
HD-SA Series - Double Semi-Automatic Hurricanefilt
local_offer
HD-SA
ADVANTAGES
Dual Vortex Power. Unmatched Capacity.
The Aytok Double Hurricanefilt is engineered to conquer the most demanding filtration challenges. Its dual-body design unleashes two powerful spiral flows working in tandem to continuously scour the screens, delivering maximum flow capacity with minimal backwashing. This powerful combination directly slashes wastewater and operational costs, while ensuring a fast, effective flush. It’s the pinnacle of our vortex technology, engineered for your biggest
GENERAL FEATURES
| Body Material | PA6GFR30 |
| Cartridge Material | SS304L, PA6GFR30 |
| Maximum Working Pressure | 8 bar ; 116 Psi |
| Minimum Working Pressure | 1 bar ; 14.5 Psi |
| Maximum Working Temperature | 60 °C ; 140°F |
| Control System | Semi Automatic Control |
| Filtration Sensitivity | 20-200 μ (micron) |
Ürün Detayı
HD-SA Series - Double Semi-Automatic Hurricanefilt
local_offer
HD-SA
GENERAL FEATURES
Cleaning Process
Contaminants suspended at the center of the screen by the water’s continuous circular motion are expelled through a discharge valve during the backwash cycle. The initiation of this cycle depends on the filter’s configuration. In semi-automatic systems, the process is manual, where the operator monitors the pressure gauges at the inlet and outlet and, upon observing an increased pressure differential, manually opens the valve to discharge the accumulated contaminants
Working Principle
The operating principle of Hurricane Filters is based on cyclonic separation. As water enters the filter, it is guided by internal helix blades that induce a powerful circular motion, or vortex. This cyclonic action generates a centrifugal force that serves two purposes: it prevents contaminants from accumulating on the screen surface, thereby minimizing clogging, and it directs the suspended particles toward the center of the filter for collection.
ADVANTAGES
Powerful Filtration, Smarter Design.
Dual Vortex Power. Unmatched Capacity.
The Aytok Double Hurricanefilt is engineered to conquer the most demanding filtration challenges. Its dual-body design unleashes two powerful spiral flows working in tandem to continuously scour the screens, delivering maximum flow capacity with minimal backwashing. This powerful combination directly slashes wastewater and operational costs, while ensuring a fast, effective flush. It’s the pinnacle of our vortex technology, engineered for your biggest
