Cleaning Process
During the cleaning process, the remaining liquid and accumulated residues inside the tank are flushed out efficiently through the valve, ensuring the system is completely cleared and ready fo
Working Principle
The fertilizer tank operates based on a pressure differential created by a throttling valve installed between the tank’s inlet and outlet lines. To operate the system, the tank is first filled with fertilizer and sealed. Opening only the inlet valve allows high-pressure water to enter and dissolve the fertilizer. After a homogeneous mixture is formed, the outlet valve is opened. The pressure difference then drives the fertilizer solution from the tank into the lower-pressure main line for distribution.
10V-10H Series - Metal Vertical & Horizontal Fertilizer Tanks
local_offer
10V & 10H
ADVANTAGES
Uncompromising Fertigation. Unmatched Durability.
The Aytok Metal Fertilizer Tank is a solid choice for safe food storage. It uses a simple pressure differential for efficient, power-free fertigation, free of moving parts. Its robust, specially coated steel structure is engineered to withstand liquid pressure and physical stress, making it a sure investment with long-term performance in the field.
GENERAL FEATURES
Özellik bilgisi mevcut değil.

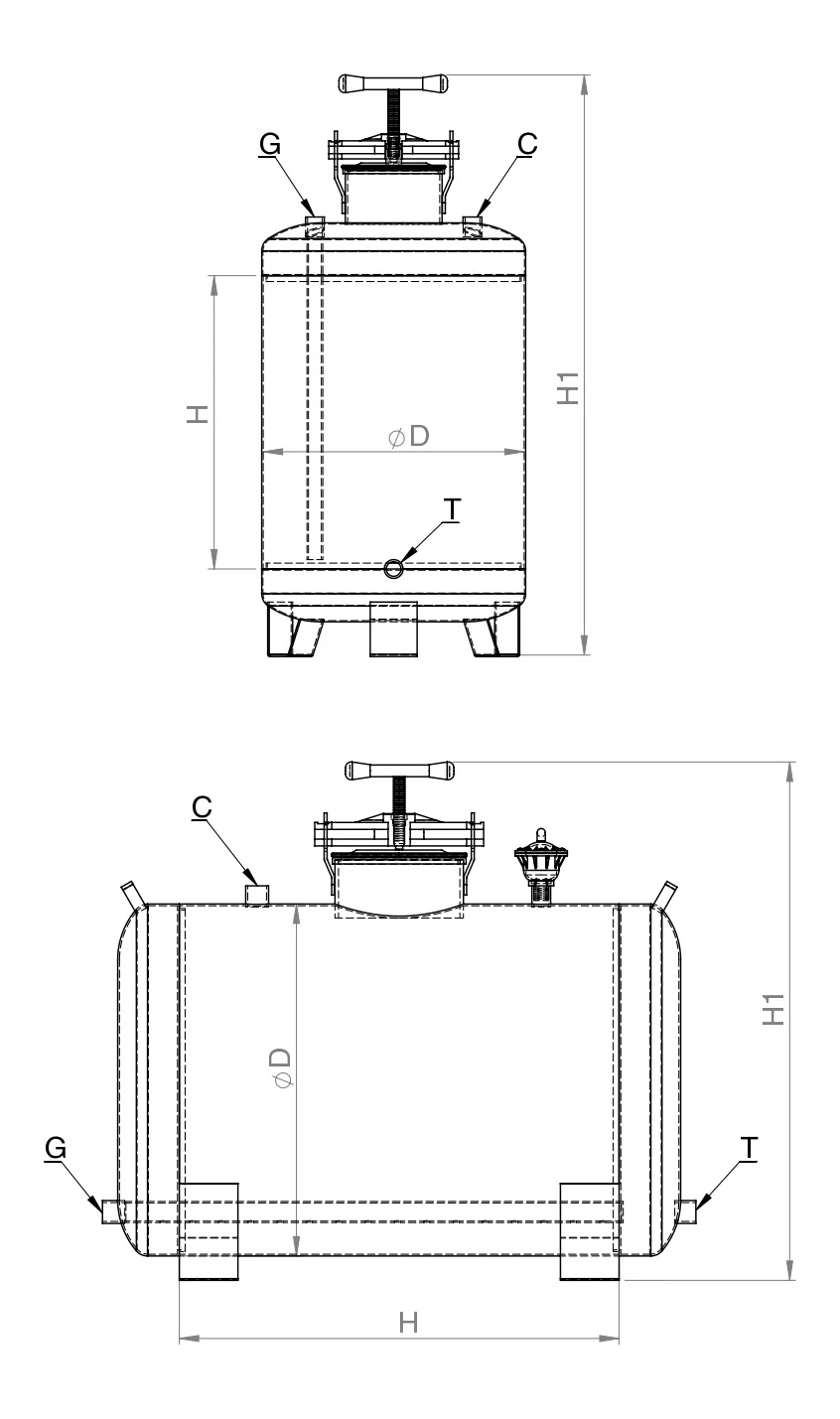

| CODE | D | G | C | T | H | H1 | Capacity | Weight kg |
|
|---|---|---|---|---|---|---|---|---|---|
| Inch | Inch | Inch | Inch | mm | mm | L | Gal(US) | ||
| 1060V | 15 | 1/2 | 1/2 | 1/2 | 330 | 790 | 60 | 16 | 20 |
| 1100V | 18 | 3/4 | 3/4 | 3/4 | 500 | 960 | 100 | 26 | 30 |
| 1200V | 24 | 1 | 1 | 1 | 600 | 1060 | 200 | 52 | 56 |
| CODE | D | G | C | T | H | H1 | Capacity | Weight kg |
|
|---|---|---|---|---|---|---|---|---|---|
| Inch | Inch | Inch | Inch | mm | mm | L | Gal(US) | ||
| 1100H | 18 | 3/4 | 3/4 | 3/4 | 500 | 740 | 100 | 26 | 33 |
| 1200H | 24 | 1 | 1 | 1 | 600 | 860 | 200 | 52 | 59 |
| 1300H | 24 | 1 | 1 | 1 | 750 | 860 | 300 | 78 | 66 |
| 1350H | 24 | 1 | 1 | 1 | 1000 | 860 | 350 | 91 | 82 |
| 1500H | 24 | 1 | 1 | 1 | 1500 | 860 | 500 | 130 | 108 |
