| Body Material | PP |
| Cartridge Material | PP |
| Maximum Working Pressure | 8 bar ; 116 Psi |
| Maximum Working Temperature | 60 °C ; 140°F |
| Filtration Sensitivity | 130 μ (micron) |
Cleaning Process
The pressure differential is manually monitored via the inlet and outlet manometers. An increase in pressure indicates the need for cleaning. To begin, shut off the water supply and depressurize the system. Then, remove the cover and extract the filter cartridge.
Working Principle
Water enters the filter and passes through the filtration element (a set of discs). During operation, contaminants gradually accumulate on the surface of this element— the outer surface for discs. This buildup obstructs the water flow, creating a pressure differential between the filter's inlet and outlet. Manual cleaning is required when this pressure differential reaches 0.7 bar.

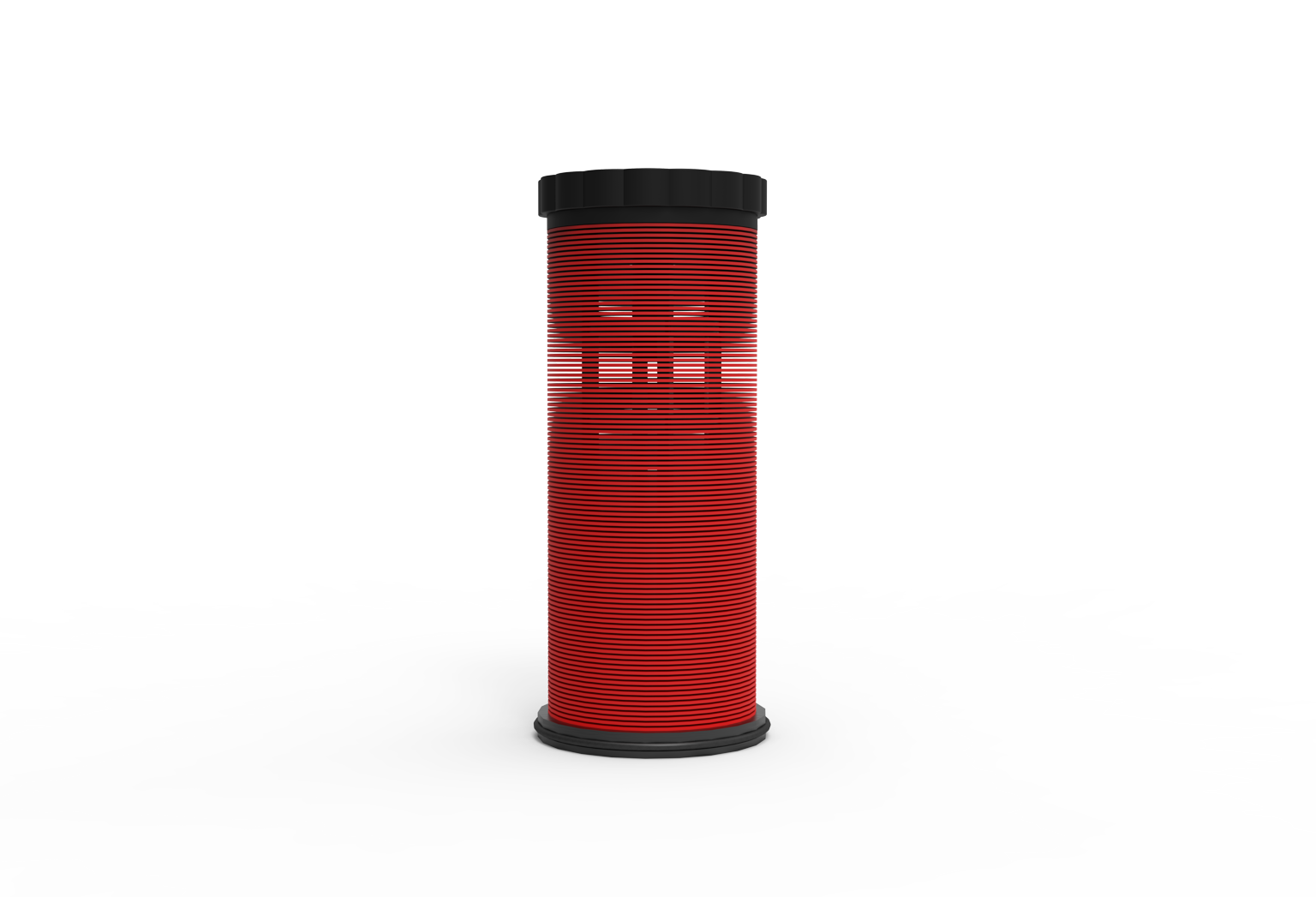

Aytok Mini Series – Disc Filters
local_offer
MPD
ADVANTAGES
Maximum Performance. Minimal Space.
Maximum Performance. Minimal Space. Designed for efficiency in tight spaces, Aytok MPD filters provide a robust and versatile solution for low-flow water systems. They are perfectly suited for applications like garden irrigation, fertigation, and protecting small-scale cooling equipment.
GENERAL FEATURES
| Body Material | PP |
| Cartridge Material | PP |
| Maximum Working Pressure | 8 bar ; 116 Psi |
| Maximum Working Temperature | 60 °C ; 140°F |
| Filtration Sensitivity | 130 μ (micron) |
| CODE | D | M | T | D1 | H | K | Flow Rate | Filtration Area | Weight | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | DN | Inch | Inch | mm | mm | mm | m³/h | GPM(US) | cm² | kg | |
| MNPE34 | 3/4 | 20 | - | 3/4 | 68 | 190 | 160 | 5 | 22 | 165 | 0,3 |
| MNPE10 | 1 | 25 | - | 3/4 | 68 | 190 | 160 | 6 | 26,4 | 165 | 0,3 |
| MDPE10 | 1 | 25 | - | 3/4 | 96 | 230 | 220 | 10 | 44 | 300 | 0,75 |
| MDPE14 | 1 1/4 | 32 | - | 3/4 | 96 | 230 | 220 | 13 | 66 | 300 | 0,75 |
| MDPE15 | 1 1/2 | 40 | - | 3/4 | 96 | 230 | 220 | 15 | 66 | 300 | 0,75 |
| MXPE15 | 1 1/2 | 40 | 1/4 | 3/4 | 120 | 280 | 270 | 20 | 88 | 515 | 1,2 |
| MXPE20 | 2 | 50 | 1/4 | 3/4 | 120 | 280 | 270 | 25 | 110 | 515 | 1,2 |
Ürün Detayı
Aytok Mini Series – Disc Filters
local_offer
MPD
GENERAL FEATURES
Cleaning Process
The pressure differential is manually monitored via the inlet and outlet manometers. An increase in pressure indicates the need for cleaning. To begin, shut off the water supply and depressurize the system. Then, remove the cover and extract the filter cartridge.
Working Principle
Water enters the filter and passes through the filtration element (a set of discs). During operation, contaminants gradually accumulate on the surface of this element— the outer surface for discs. This buildup obstructs the water flow, creating a pressure differential between the filter's inlet and outlet. Manual cleaning is required when this pressure differential reaches 0.7 bar.
ADVANTAGES
Powerful Filtration, Smarter Design.
Maximum Performance. Minimal Space.
Maximum Performance. Minimal Space. Designed for efficiency in tight spaces, Aytok MPD filters provide a robust and versatile solution for low-flow water systems. They are perfectly suited for applications like garden irrigation, fertigation, and protecting small-scale cooling equipment.
DÖKÜMANLAR
| CODE | D | M | T | D1 | H | K | Flow Rate | Filtration Area | Weight | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | DN | Inch | Inch | mm | mm | mm | m³/h | GPM(US) | cm² | kg | |
| MNPE34 | 3/4 | 20 | - | 3/4 | 68 | 190 | 160 | 5 | 22 | 165 | 0,3 |
| MNPE10 | 1 | 25 | - | 3/4 | 68 | 190 | 160 | 6 | 26,4 | 165 | 0,3 |
| MDPE10 | 1 | 25 | - | 3/4 | 96 | 230 | 220 | 10 | 44 | 300 | 0,75 |
| MDPE14 | 1 1/4 | 32 | - | 3/4 | 96 | 230 | 220 | 13 | 66 | 300 | 0,75 |
| MDPE15 | 1 1/2 | 40 | - | 3/4 | 96 | 230 | 220 | 15 | 66 | 300 | 0,75 |
| MXPE15 | 1 1/2 | 40 | 1/4 | 3/4 | 120 | 280 | 270 | 20 | 88 | 515 | 1,2 |
| MXPE20 | 2 | 50 | 1/4 | 3/4 | 120 | 280 | 270 | 25 | 110 | 515 | 1,2 |
