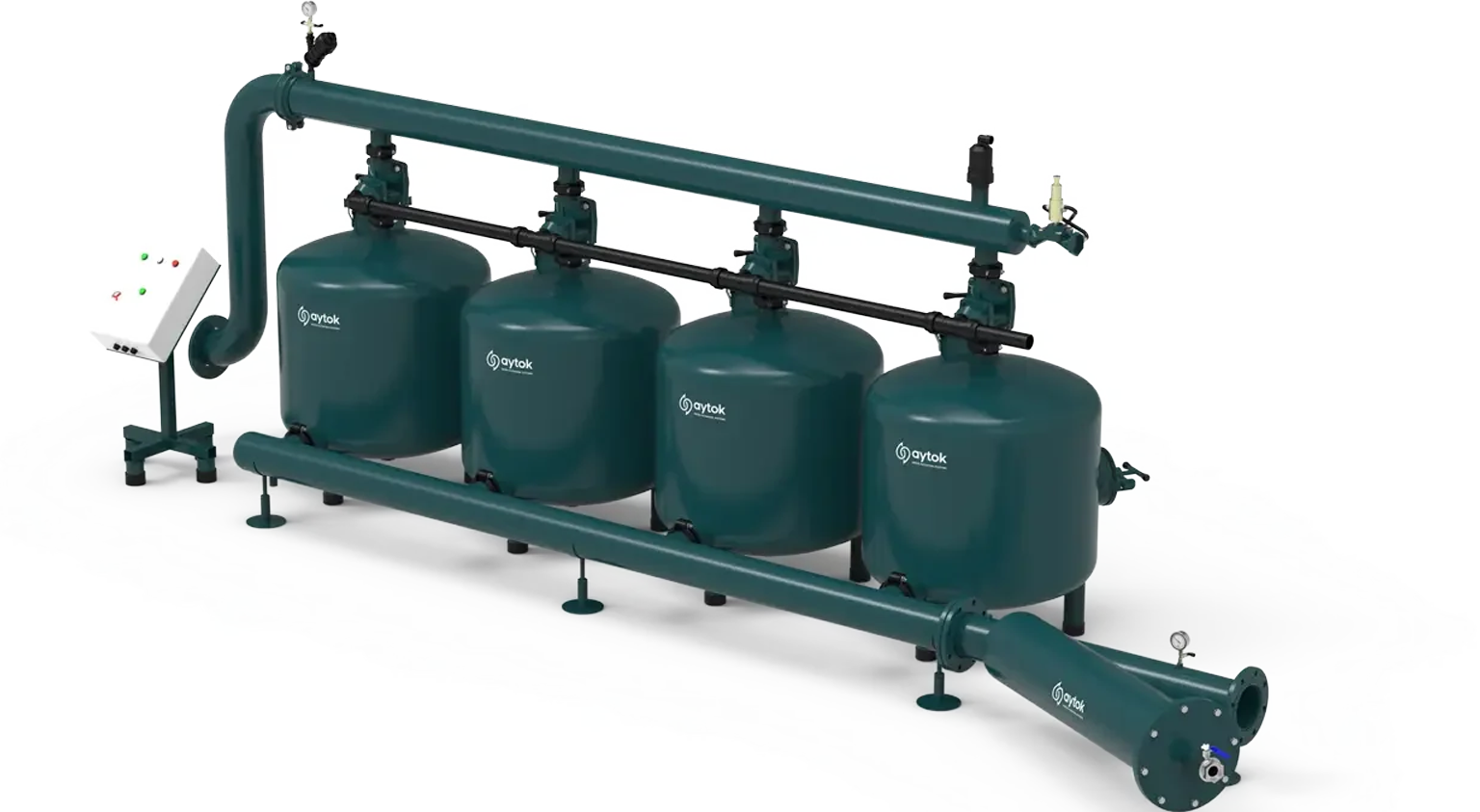

Automatic Sand Media Filter Systems with Metal Screen Filters
GENERAL FEATURES
| Filter Type | Metal Screen Filter(YE) |
| Filter Body Material | S235JR |
| Screen Material | SS304L, PA6GFR30 |
| Collector Material | S235JR, SS304L, SS316L |
| Maximum Working Pressure | 8 bar ; 116 Psi |
| Minimum Working Pressure | 2 bar ; 29 Psi |
| Maximum Working Temperature | 60 °C ; 140°F |
| Backwash Operation Criteria | Time and Pressure Differential Setup |
| Control System | Electronic(AC/DC) |
| Filtration Sensitivity | 20-2000 μ (micron) |
| If the collector material is S235JR | |
| Painting Method | Electrostatic Powder Coating |
| Painting Material | Epoxy Polyester |
| CODE | System | Capacity | |
|---|---|---|---|
| m³/h | GPM(US) | ||
| A323030YE | 3"X2X3"SAND MEDIA FILTER (24"Tank) + 1 X YE30 | 20-40 | 88-176 |
| A433030YE | 4"X3X3"SAND MEDIA FILTER (24"Tank) + 1 X YE40 | 40-70 | 176-308 |
| A443030YE | 4"X4X3"SAND MEDIA FILTER (24"Tank) + 1 X YE40S 10"BODY | 70-100 | 308-440 |
| A553030YE | 5"X5X3"SAND MEDIA FILTER (24"Tank) + 1 X YE50 | 100-130 | 440-572 |
| A663030YE | 6"X6X3"SAND MEDIA FILTER (24"Tank) + 1 X YE60 | 130-180 | 572-792 |
| A643060YE | 6"X4X3"SAND MEDIA FILTER (36"Tank) + 1 X YE60S | 150-200 | 660-880 |
| A853060YE | 8"X5X3"SAND MEDIA FILTER (36"Tank) + 1 X YE80 | 200-250 | 880-1100 |
| A863060YE | 8"X6X3"SAND MEDIA FILTER (36"Tank) + 1 X YE80 | 250-300 | 1100-1320 |
| A873060YE | 8"X7X3"SAND MEDIA FILTER (36"Tank) + 2 X YE60 | 300-350 | 1320-1540 |
| A1083060YE | 10"X8X3"SAND MEDIA FILTER (36"Tank) + 2 X YE60S | 350-400 | 1540-1760 |
| A1093060YE | 10"X9X3"SAND MEDIA FILTER (36"Tank) + 2 X YE80 | 400-450 | 1760-1980 |
| A10103060YE | 10"X10X3"SAND MEDIA FILTER (36"Tank) + 2 X YE80 | 450-500 | 1980-2200 |
