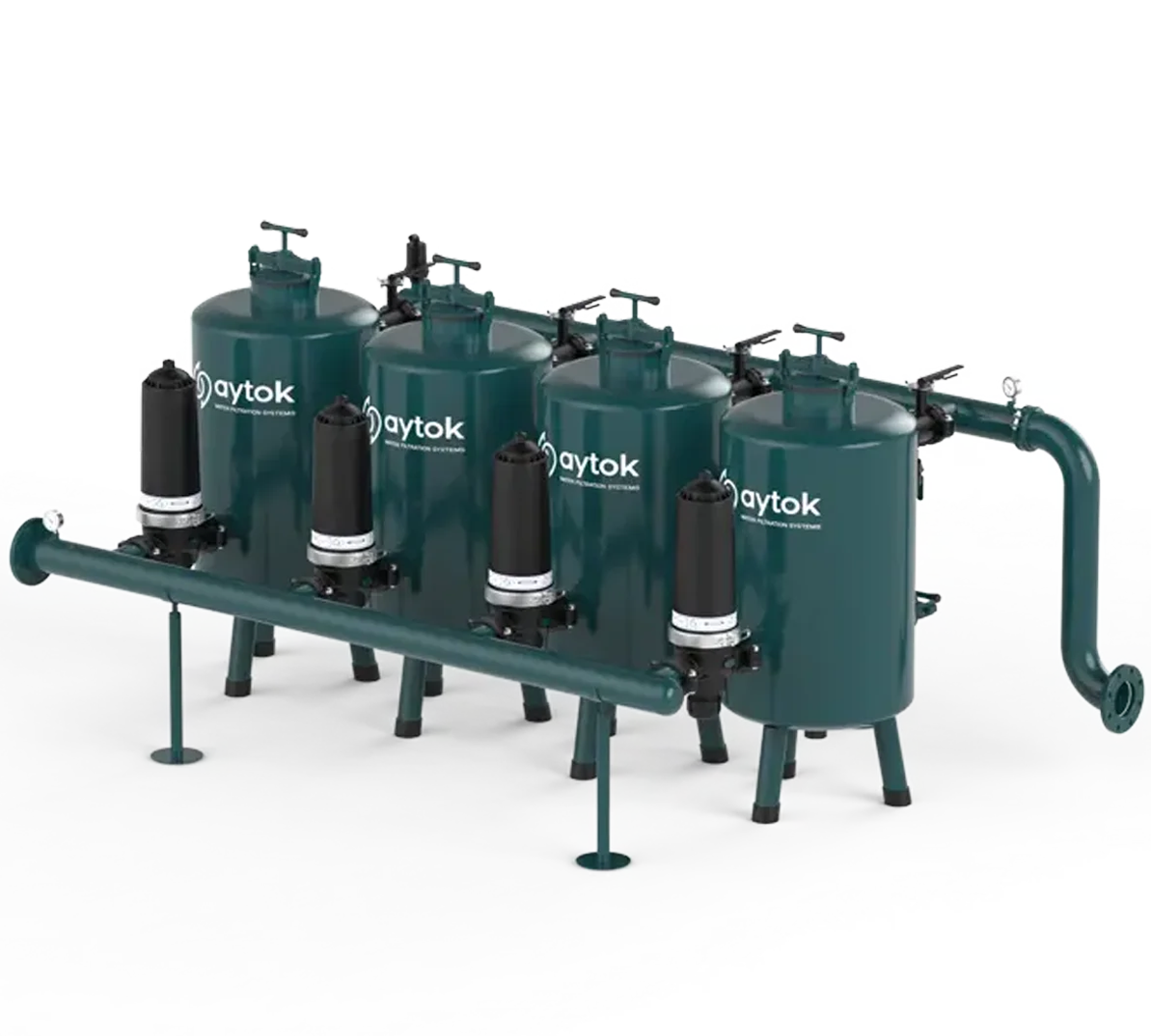

Manual Sand Media Filter System with Plastic Disc Filters
GENERAL FEATURES
| Plastic Filter Type | Self Clean Disc(PSC), Self Clean Disc(PSD) |
| Filter Body Material | PA6GFR30 |
| Disc Material | PP |
| Collector Material | S235JR, SS304L, SS316L |
| Maximum Working Pressure | 8 bar ; 116 Psi |
| Minimum Working Pressure | PSD: 1 bar ; 14.5 Psi, PSC: 2 bar ; 29 Psi |
| Maximum Working Temperature | 60 °C ; 140°F |
| Backwash Operation Criteria | Pressure Differential |
| Control System | Manual |
| Filtration Sensitivity | 20, 50, 100, 130, 200 μ (micron) |
| If the collector material is S235JR | |
| Painting Method | Electrostatic Powder Coating |
| Painting Material | Epoxy Polyester |
| CODE | System | Capacity | |
|---|---|---|---|
| m³/h | GPM(US) | ||
| M223020 | 2"X2X2"SAND MEDIA FILTER SYSTEM (18"Tank) | 10-20 | 44-88 |
| M323030 | 3"X2X3"SAND MEDIA FILTER SYSTEM (24"Tank) | 20-50 | 88-220 |
| M433030 | 4"X3X3"SAND MEDIA FILTER SYSTEM (24"Tank) | 50-70 | 220-308 |
| M443030 | 4"X4X3"SAND MEDIA FILTER SYSTEM (24"Tank) | 70-100 | 308-440 |
| M553030 | 5"X5X3"SAND MEDIA FILTER SYSTEM (24"Tank) | 100-130 | 440-572 |
| M663030 | 6"X6X3"SAND MEDIA FILTER SYSTEM (24"Tank) | 130-180 | 572-792 |
| M643060 | 6"X4X3"SAND MEDIA FILTER SYSTEM (36"Tank) | 150-200 | 660-880 |
| M853060 | 8"X5X3"SAND MEDIA FILTER SYSTEM (36"Tank) | 200-250 | 880-1100 |
| M863060 | 8"X6X3"SAND MEDIA FILTER SYSTEM (36"Tank) | 250-300 | 1100-1320 |
| M873060 | 8"X7X3"SAND MEDIA FILTER SYSTEM (36"Tank) | 300-350 | 1320-1540 |
| M1083060 | 10"X8X3"SAND MEDIA FILTER SYSTEM (36"Tank) | 350-400 | 1540-1760 |
| M1093060 | 10"X9X3"SAND MEDIA FILTER SYSTEM (36"Tank) | 400-450 | 1760-1980 |
| M10103060 | 10"X10X3"SAND MEDIA FILTER SYSTEM (36"Tank) | 450-500 | 1980-2200 |
| M10113060 | 10"X11X3"SAND MEDIA FILTER SYSTEM (36"Tank) | 500-550 | 2200-2420 |
| M12123060 | 12"X12X3"SAND MEDIA FILTER SYSTEM (36"Tank) | 550-600 | 2420-2640 |
