HurricaneFilt T Model

Hurricanefilt is a kind of screen filter.Particles accumulate on the inner screensurface when the water passes throughthe screen. These particles are cleanedby water vortex during filtration. This vortex remove the particles from the screen surfaceduring filtration and supports backwash operation. Hurricanefilt has a vortex flow. This vortex flow occurs thanks to the helix at the inlet part. Particles on the screen surface are swept and conveyed to the drain by vortex flow. Particles accumulate in front of the drain. When the backwash starts, the particles are drained from filter immediately.

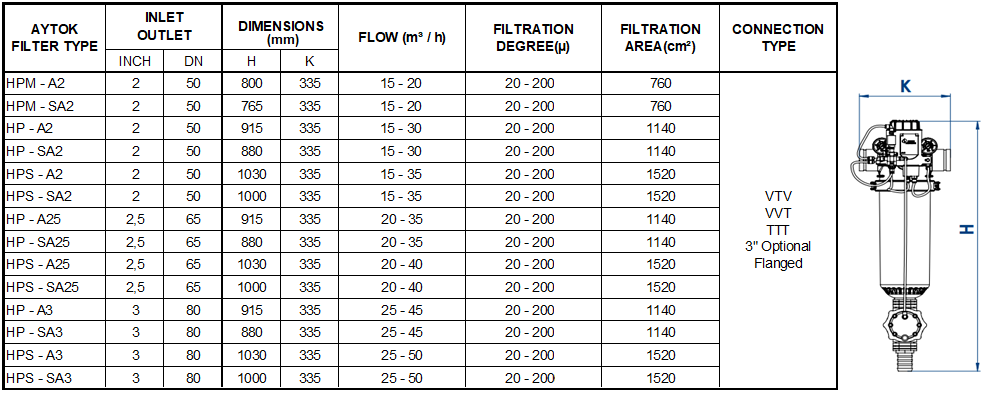

Technical Specification

Body Material: PA6GFR30
Cartridge Metarial: AISI316 + PP
Maximum Working Pressure: 8 Bar (116 PSI)
Minimum Working Pressure: 1 Bar (14,5 PSI)
Maximum Working Temperature : 60 °C (140 °F)
Back Flush Operation Criteria: Pressure Differential
Back Flush Controlling Unit : Electronical
Filtration Degree: 20-200 micron (µ)
