Pressure Reducing Control Valves are the valves that are used to reduce the inlet pressure to the desired pressure value, thanks to the pilot placed on it.

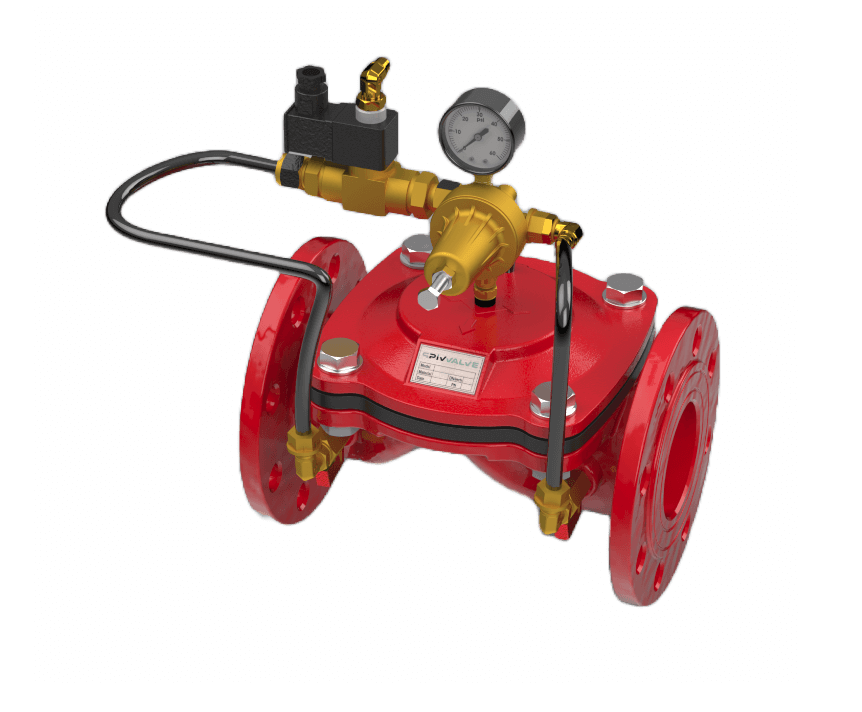

CASTING BODY SOLENOID PRESSURE REDUCING VALVES
Pressure reducing control valves continuously control the pressure value to be adjusted and keep it constant without being affected by the flow rate and inlet pressure values. When there is no flow in the system, the valve closes itself. When the valve inlet pressure value in the system falls below the set outlet pressure value, the valve opens itself. It is suitable for use in horizontal or vertical positions in valve systems.
Pressure Range: PN 10, PN 16, PN 25

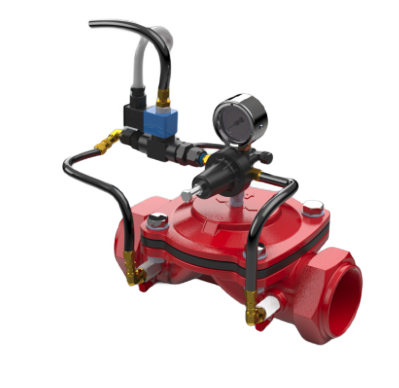

PLASTIC BODY SOLENOID PRESSURE REDUCING VALVES
Solenoid Controlled Pressure Reducing Control Valve is a hydraulic control valve that reduces the inlet pressure value to the desired pressure value. The control of the main valve is carried out by the solenoid coils mounted on it. The solenoid valve is equipped with electrical signal, controller, time relay, switch, PLC control unit and control equipment. Thus, automation and control in application systems can be achieved easily.
Pressure Range: PN 10
