Quick Pressure Relief Control Valves are designed to quickly evacuate high pressure to outside and protect the system with a sudden opening movement in water systems with very high pressure increase.

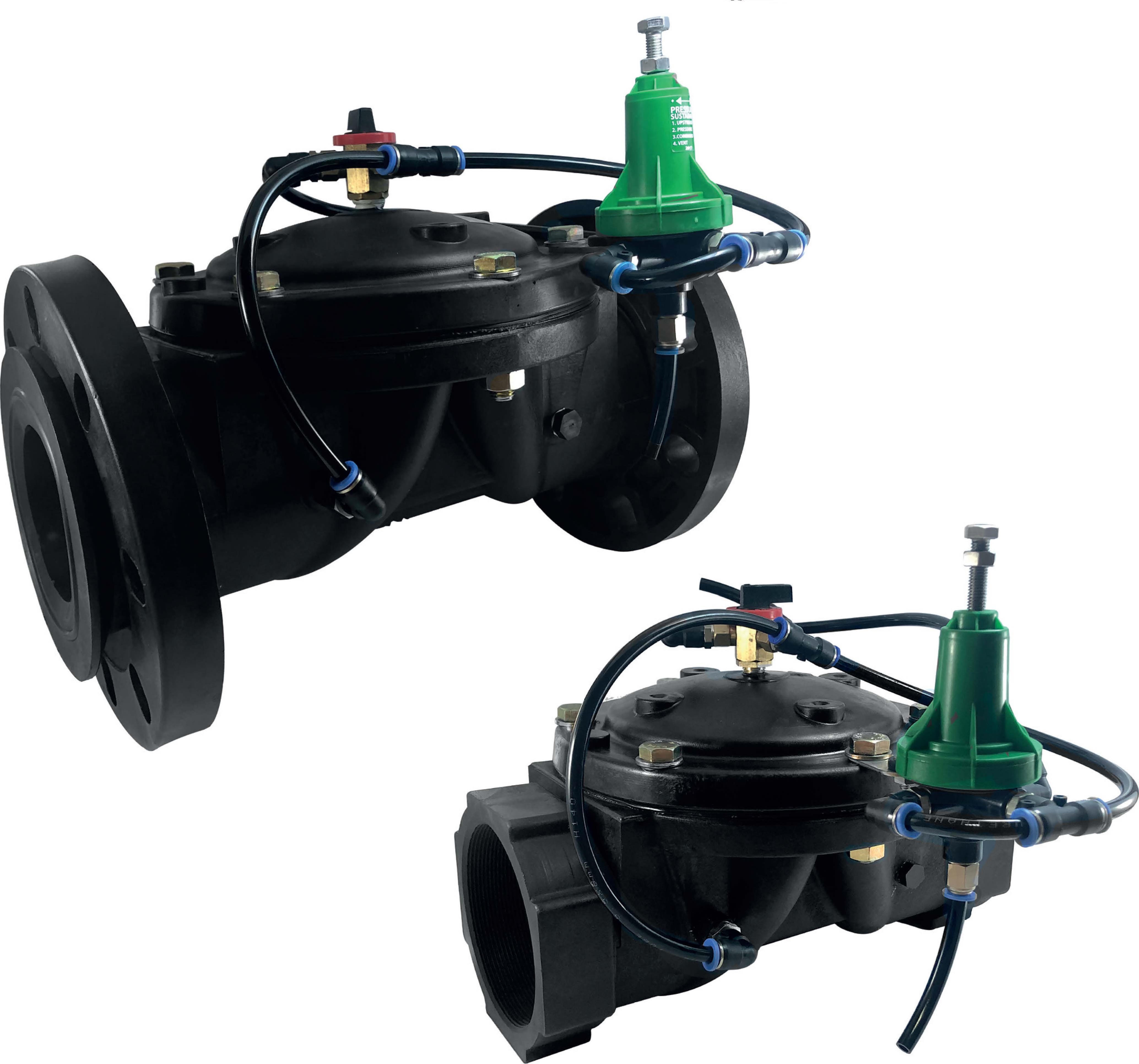

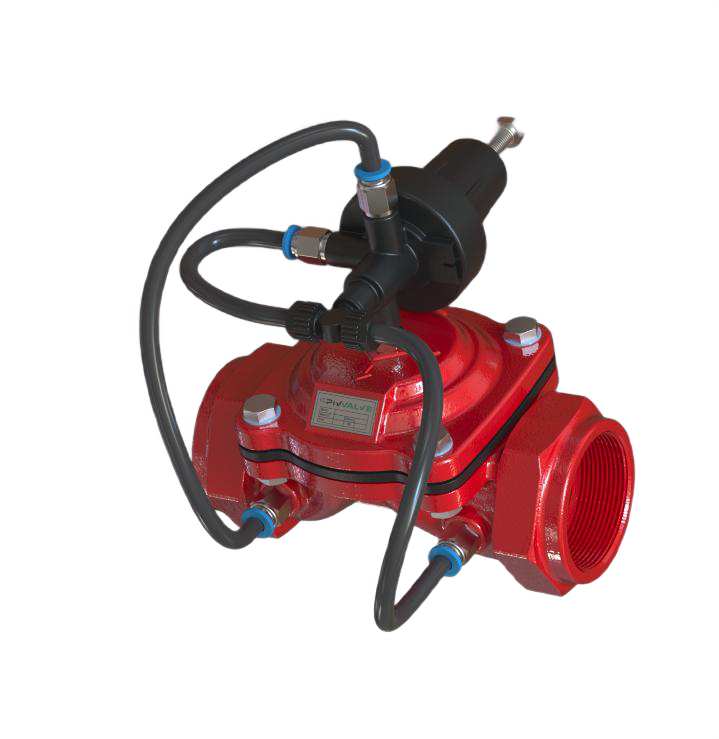

CASTING BODY QUICK PRESSURE RELIEF VALVE
By means of the pilot on the valve, the inlet pressure can be adjusted to the desired pressure value. When the inlet pressure in the system rises above the set pressure for any reason, the valve opens quickly, evacuating the excess pressure and protecting the system. Despite the sudden opening, the closing of the valve is slow at a level that does not create fluctuations, thanks to its hydraulic pressure operation. Completely sealed closure is ensured. It can also be used as a safety and warning valve in the outlet lines of pressure reducing control valves at critical points in water systems.
Working Pressure: PN10, PN 16, PN 25

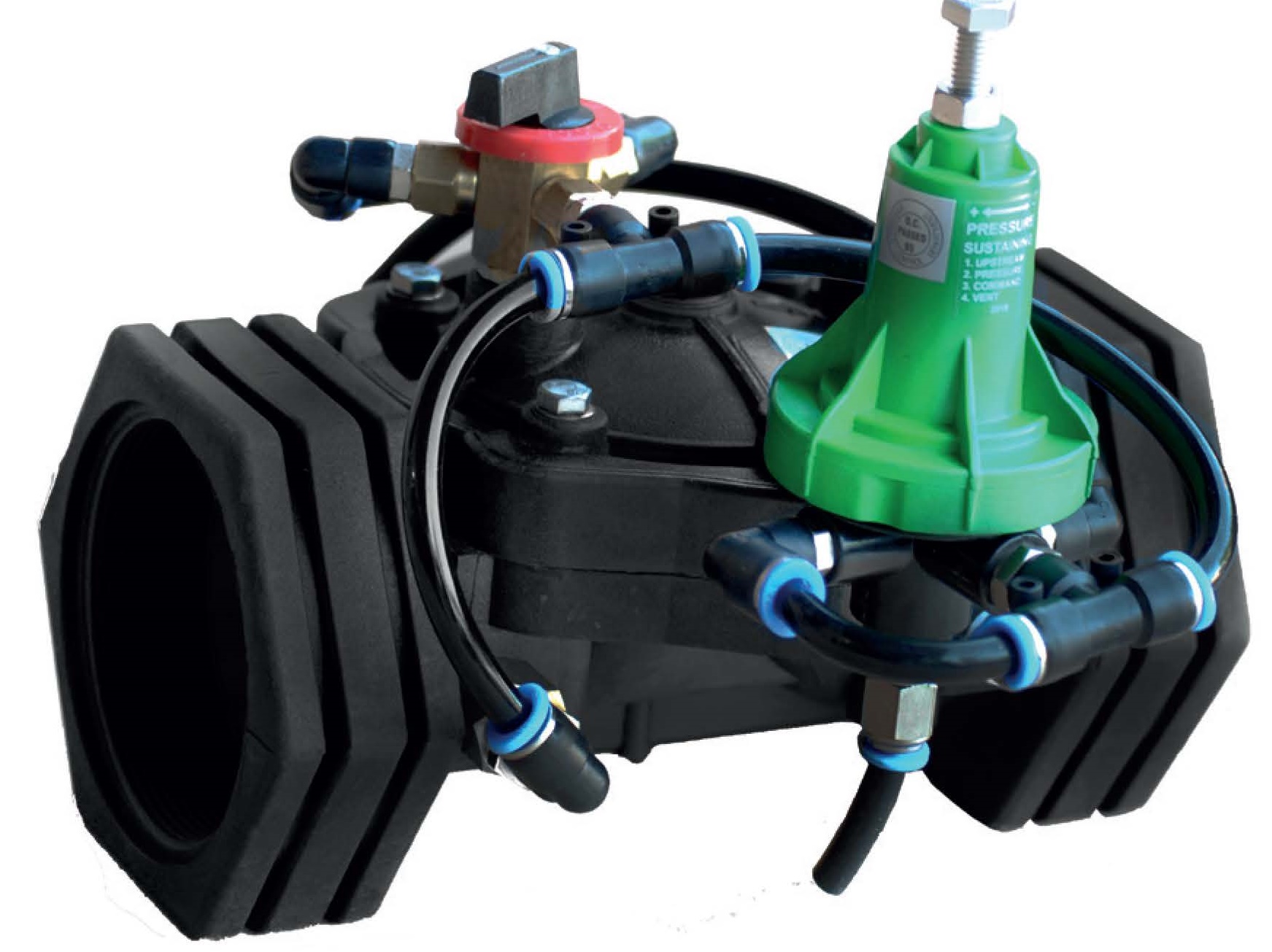

PLASTIC BODY QUICK PRESSURE RELIEF VALVE
Quick Pressure Relief Control Valve is a safety control valve designed to protect the system by quickly releasing sudden pressure fluctuations caused by sudden changes in water velocity. When the mains pressure goes out of the set point, the valve opens quickly by itself and releases excess pressure, protecting the system. When the line pressure drops to the normal level, it is closed slowly and automatically, completely sealed without causing fluctuations.
Working Pressure: PN10
