Vertical Fertilizer Tank

BODY MATERIAL ST- 37 MAXIMUM WORKIG PRESSURE 8 BAR (116 PSI) MAXIMUM WORKING TEMPERATURE 60 ⁰ C (140 F) PAINTING METHOD Elektrostatik Toz Boya PAINT MATERIAL Epoxi Polyester

Technical Specification

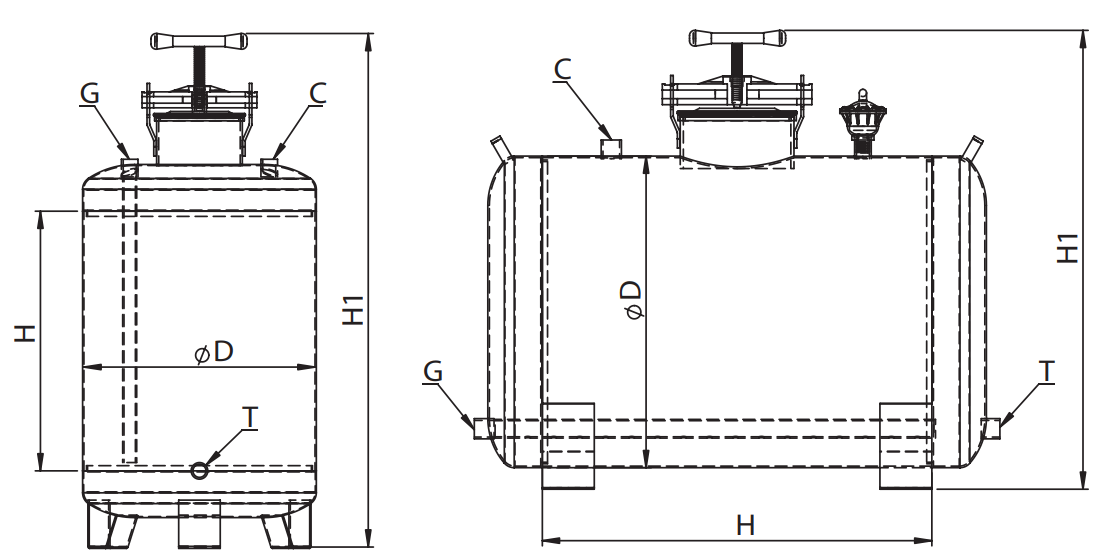

CODE D G C T H H1 max.Pressure CAPACITY WEIGHT
inch mm bar lt kg
1060V 15 ½ ½ ½ 330 790 8 60 20
1100V 18 ¾ ¾ ¾ 500 960 8 100 30
1200V 24 1 1 1 600 1060 8 200 56
